WMF6D1K-F

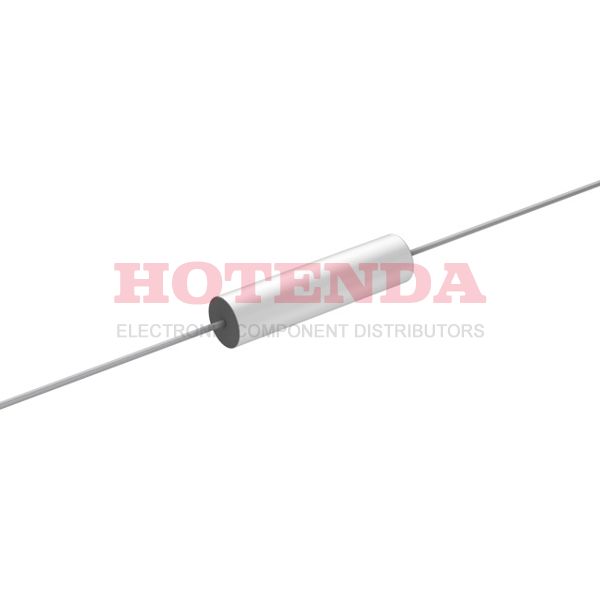

  • WMF6D1K-F - WMF 1000pF Film Capacitor ±10% Axial PC Pins 630V-DC 250V-AC Polyester Through Hole
  • WMF6D1K-F - WMF 1000pF Film Capacitor ±10% Axial PC Pins 630V-DC 250V-AC Polyester Through Hole

WMF6D1K-F

WMF6D1K-F

Cornell Dubilier Electronics (CDE)

WMF 1000pF Film Capacitor ±10% Axial PC Pins 630V-DC 250V-AC Polyester Through Hole

SOT-23

WMF6D1K-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape WIRE
Dielectric MaterialPolyester
Operating Temperature-55°C~125°C
PackagingBulk
Published 2013
Series WMF
Size / Dimension 0.197Diax0.811L 5.00mmx20.60mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 250
HTS Code8532.25.00.60
Capacitance 1000pF
Voltage - Rated DC 630V
Voltage - Rated AC 250V
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Diameter 500 μm
Life (Hours) 500 hours
Diameter 5mm
Length 20.6mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:2504 items

WMF6D1K-F Product Details

WMF6D1K-F Overview


The device is capable of operating at the temperature of -55°C~125°C.

WMF6D1K-F Features



WMF6D1K-F Applications


There are a lot of Cornell Dubilier Electronics (CDE) WMF6D1K-F applications of film capacitors.

  • Audio/video equipment
  • Matching networks
  • Bypassing
  • Lighting
  • Coupling, decoupling
  • Filters
  • Switch mode power supplies
  • Electronic ballasts
  • IGBT
  • Blocking
