505PHC330KN

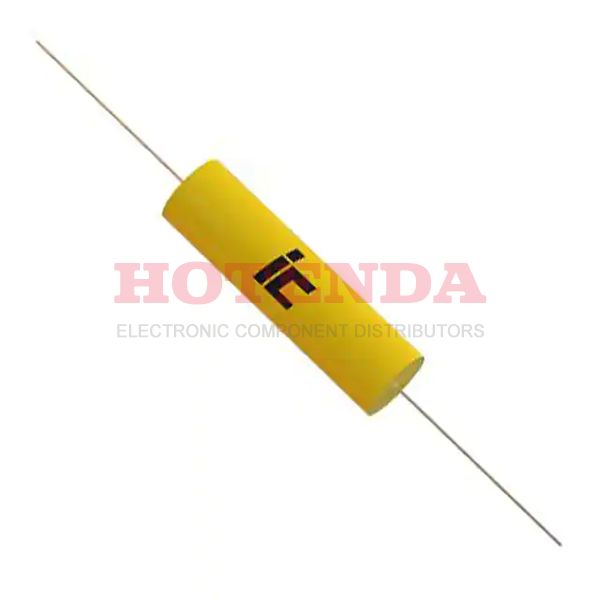

  • 505PHC330KN - PHC 5μF Film Capacitor ±10% Axial PC Pins 330V-DC 220V-AC Polypropylene (PP), Metallized Through Hole
  • 505PHC330KN - PHC 5μF Film Capacitor ±10% Axial PC Pins 330V-DC 220V-AC Polypropylene (PP), Metallized Through Hole

505PHC330KN

505PHC330KN

Illinois Capacitor

PHC 5μF Film Capacitor ±10% Axial PC Pins 330V-DC 220V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

505PHC330KN Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 17 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~85°C
PackagingBulk
Series PHC
Size / Dimension 0.768Diax1.811L 19.50mmx46.00mm
Tolerance ±10%
JESD-609 Code e3
Feature Low ESR, Low ESL
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications DC Link, DC Filtering; High Frequency, Switching
Additional FeatureRATED AC VOLTAGE (V): 200
HTS Code8532.25.00.60
Capacitance 5μF
Voltage - Rated DC 330V
Voltage - Rated AC 220V
Capacitor Type FILM CAPACITOR
ESR (Equivalent Series Resistance) 4.1mOhm
RoHS StatusROHS3 Compliant
In-Stock:1577 items

Pricing & Ordering

QuantityUnit PriceExt. Price
300$2.83500$850.5

505PHC330KN Product Details

505PHC330KN Overview


A device with a 4.1mOhm ESR (Equivalent Series Resistance) has been identified.Temperatures of -40°C~85°C are suitable for operating the device.

505PHC330KN Features


4.1mOhm equivalent series resistance (ESR)


505PHC330KN Applications


There are a lot of Illinois Capacitor
505PHC330KN applications of film capacitors.


  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
