ECQ-E4105KZ

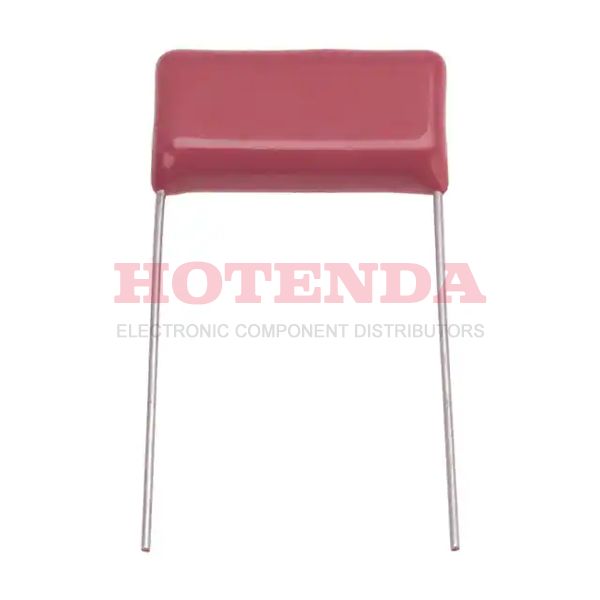

  • ECQ-E4105KZ - ECQ-E 1μF Film Capacitor ±10% Radial PC Pins 400V-DC Polyester, Metallized Through Hole
  • ECQ-E4105KZ - ECQ-E 1μF Film Capacitor ±10% Radial PC Pins 400V-DC Polyester, Metallized Through Hole

ECQ-E4105KZ

ECQ-E4105KZ

Panasonic Electronic Components

ECQ-E 1μF Film Capacitor ±10% Radial PC Pins 400V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E4105KZ Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~85°C
PackagingBulk
Published 2002
Series ECQ-E
Size / Dimension 1.142Lx0.551W 29.00mmx14.00mm
Tolerance ±10%
Part StatusObsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Max Operating Temperature85°C
Min Operating Temperature -40°C
Applications DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Capacitance 1μF
Voltage - Rated DC 400V
Lead Pitch 25.5016mm
Lead Length 25mm
Lead Spacing1.004 25.50mm
Height 22mm
Height Seated (Max) 0.886 22.50mm
Length 29.0068mm
Width 13.9954mm
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:3976 items

ECQ-E4105KZ Product Details

ECQ-E4105KZ Overview


Lead spacing is 1.004 25.50mm for this electrical device.-40°C~85°C is the maximum temperature at which the device can operate.

ECQ-E4105KZ Features



ECQ-E4105KZ Applications


There are a lot of Panasonic Electronic Components ECQ-E4105KZ applications of film capacitors.

  • Filters
  • Electronic ballasts
  • IGBT
  • Industrial and automotive inverters
  • Mobile communications
  • TV and monitor sets
  • Filtering
  • Bypassing
  • Matching networks
  • Coupling, decoupling
