ECQ-E2224JF9

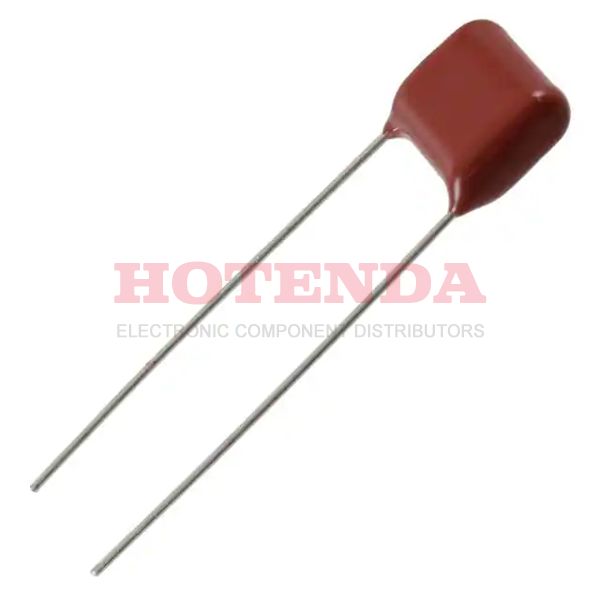

  • ECQ-E2224JF9 - ECQ-E(F) 0.22μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole
  • ECQ-E2224JF9 - ECQ-E(F) 0.22μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

ECQ-E2224JF9

ECQ-E2224JF9

Panasonic Electronic Components

ECQ-E(F) 0.22μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2224JF9 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingTape & Reel (TR)
Published 2005
Series ECQ-E(F)
Size / Dimension 0.472Lx0.217W 12.00mmx5.50mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 0.22μF
Voltage - Rated DC 250V
Packing Method AMMO PACK
Lead Pitch 5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.197 5.00mm
Height Seated (Max) 0.610 15.50mm
RoHS StatusROHS3 Compliant
In-Stock:37212 items

Pricing & Ordering

QuantityUnit PriceExt. Price

ECQ-E2224JF9 Product Details

ECQ-E2224JF9 Overview


0.197 5.00mm is the lead spacing of this electrical device.It is capable of operating at -40°C~105°C degrees Celsius.

ECQ-E2224JF9 Features




ECQ-E2224JF9 Applications


There are a lot of Panasonic Electronic Components
ECQ-E2224JF9 applications of film capacitors.


  • Bypassing
  • RFI for automotive
  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
