ECQ-E1155KFB

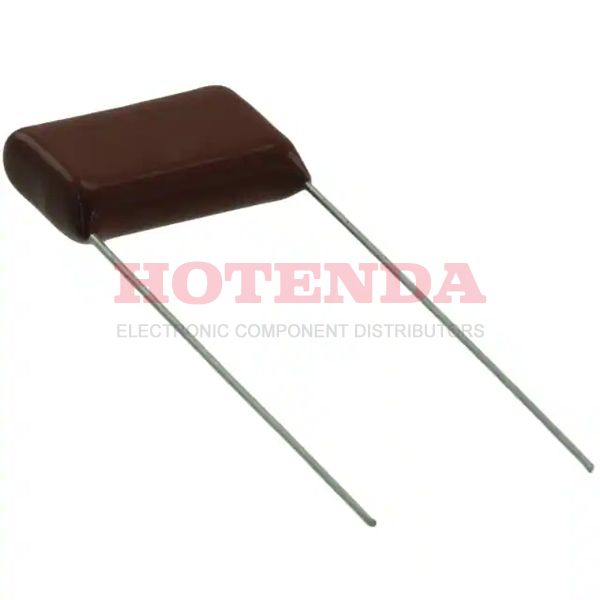

  • ECQ-E1155KFB - ECQ-E(F) 1.5μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized Through Hole
  • ECQ-E1155KFB - ECQ-E(F) 1.5μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized Through Hole

ECQ-E1155KFB

ECQ-E1155KFB

Panasonic Electronic Components

ECQ-E(F) 1.5μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E1155KFB Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Contact PlatingTin
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Series ECQ-E(F)
Size / Dimension 0.728Lx0.236W 18.50mmx6.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 1.5μF
Voltage - Rated DC 100V
Lead Pitch 10mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.394 10.00mm
Size Code 7324
Height Seated (Max) 0.724 18.40mm
Length 18.5mm
Width 6mm
RoHS StatusROHS3 Compliant
In-Stock:13546 items

Pricing & Ordering

QuantityUnit PriceExt. Price

ECQ-E1155KFB Product Details

ECQ-E1155KFB Overview


Electrical devices such as this have a lead spacing of 0.394 10.00mm.The device is capable of operating at the temperature of -40°C~105°C.

ECQ-E1155KFB Features



ECQ-E1155KFB Applications


There are a lot of Panasonic Electronic Components ECQ-E1155KFB applications of film capacitors.

  • IGBT
  • Global positioning systems
  • Filters
  • Industrial and automotive inverters
  • Coupling, decoupling
  • Lighting
  • Compact fluorescent lamps (CFL)
  • Switch mode power supplies
  • TV and monitor sets
  • Blocking
