ECQ-E2183JFB

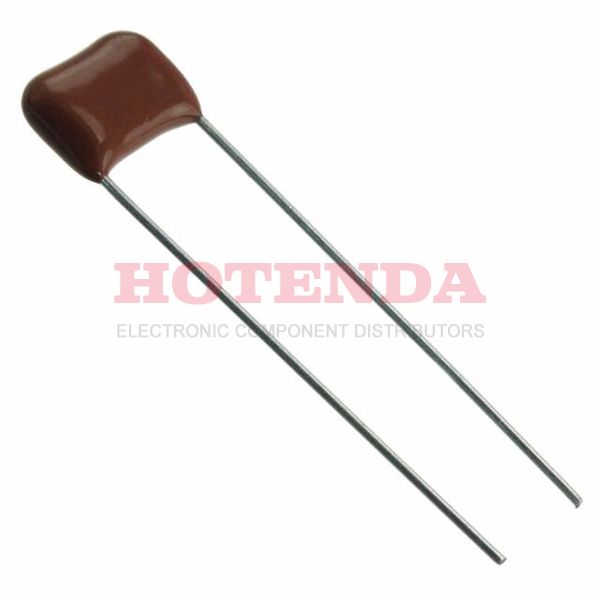

  • ECQ-E2183JFB - ECQ-E(F) 0.018μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole
  • ECQ-E2183JFB - ECQ-E(F) 0.018μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

ECQ-E2183JFB

ECQ-E2183JFB

Panasonic Electronic Components

ECQ-E(F) 0.018μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2183JFB Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Series ECQ-E(F)
Size / Dimension 0.406Lx0.173W 10.30mmx4.40mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 0.018μF
Voltage - Rated DC 250V
Lead Pitch 7.5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.295 7.50mm
Size Code 4117
Height Seated (Max) 0.492 12.50mm
Length 10.3mm
Width 4.4mm
RoHS StatusROHS3 Compliant
In-Stock:55110 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.344075$0.344075
10$0.324599$3.24599
100$0.306225$30.6225
500$0.288892$144.446
1000$0.272540$272.54

ECQ-E2183JFB Product Details

ECQ-E2183JFB Overview


Electrical devices with 0.295 7.50mm lead spacing are used in this application.A temperature of -40°C~105°C is suitable for operation of the device.

ECQ-E2183JFB Features




ECQ-E2183JFB Applications


There are a lot of Panasonic Electronic Components
ECQ-E2183JFB applications of film capacitors.


  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
