PHE450MB6100JR06

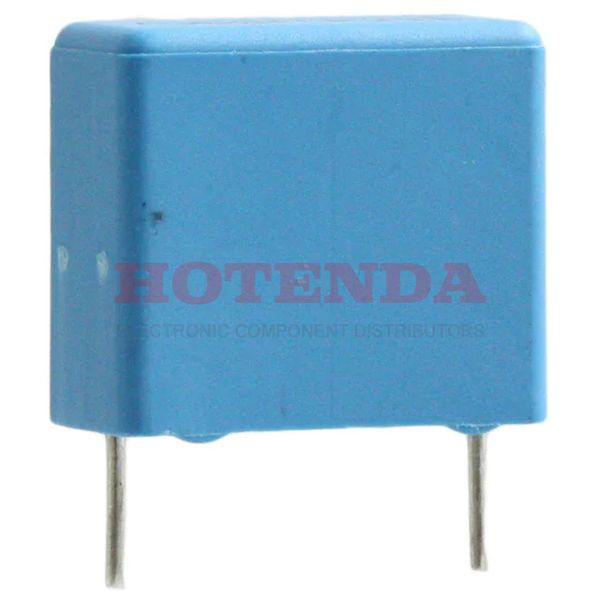

  • PHE450MB6100JR06 - PHE450 0.1μF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized Through Hole
  • PHE450MB6100JR06 - PHE450 0.1μF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized Through Hole

PHE450MB6100JR06

PHE450MB6100JR06

KEMET

PHE450 0.1μF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

PHE450MB6100JR06 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 28 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2012
Series PHE450
Size / Dimension 0.709Lx0.335W 18.00mmx8.50mm
Tolerance ±5%
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications High Frequency, Switching
Additional FeatureRATED AC VOLTAGE (V): 300
HTS Code8532.25.00.70
Capacitance 0.1μF
Voltage - Rated DC 630V
Depth 8.5mm
Voltage - Rated AC 400V
Lead Pitch 15mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.591 15.00mm
Lead Diameter 1 mm
Size Code 7133
Height 8.5mm
Height Seated (Max) 0.630 16.00mm
Length 18mm
RoHS StatusROHS3 Compliant
In-Stock:3881 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.422000$1.422
10$1.341509$13.41509
100$1.265575$126.5575
500$1.193939$596.9695
1000$1.126357$1126.357

PHE450MB6100JR06 Product Details

PHE450MB6100JR06 Overview


0.591 15.00mm is the lead spacing of this electrical device.Temperatures of -55°C~105°C are suitable for operating the device.

PHE450MB6100JR06 Features



PHE450MB6100JR06 Applications


There are a lot of KEMET PHE450MB6100JR06 applications of film capacitors.

  • Filters
  • Test and measuring equipment
  • Satellite TV
  • Compact fluorescent lamps (CFL)
  • Audio/video equipment
  • Coupling, decoupling
  • RFI for automotive
  • Global positioning systems
  • VCO's
  • Filtering
