Name: B32776E1146J000
Brand: TDK Electronics Inc.
SKU: B32776E1146J000
Price: 11.97000 USD
Availability: InStock

new

B32776E1146J000

Manufacturer part number:B32776E1146J000

Manufacturer:TDK Electronics Inc.

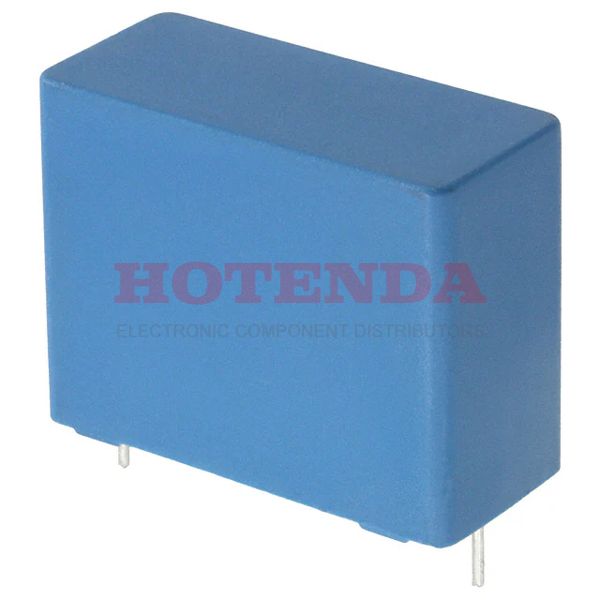

Description:B32776 14μF Film Capacitor ±5% Radial PC Pins 1300V 1.3kV-DC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32776E1146J000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	B32776
Size / Dimension	1.654Lx1.181W 42.00mmx30.00mm
Tolerance	±5%
JESD-609 Code	e3
Feature	Long Life
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	DC Link, DC Filtering
HTS Code	8532.25.00.70
Capacitance	14μF
Voltage - Rated DC	1300V 1.3kV
Terminal Pitch	37.5mm
Reach Compliance Code	unknown
Capacitor Type	FILM CAPACITOR
ESR (Equivalent Series Resistance)	5mOhm
Lead Spacing	1.476 37.50mm
Rated (DC) Voltage (URdc)	1300V
Height Seated (Max)	1.772 45.00mm
Length	42mm
Width	30mm
RoHS Status	ROHS3 Compliant

B32776E1146J000 Product Details

B32776E1146J000 Overview

The rated (DC) voltage (URdc) of systems should be 1300V.A device with a 5mOhm ESR (Equivalent Series Resistance) has been identified.Electrical devices have 1.476 37.50mm lead spacing.Temperatures of -40°C~105°C are suitable for operating the device.
