ECQ-E2473JFW

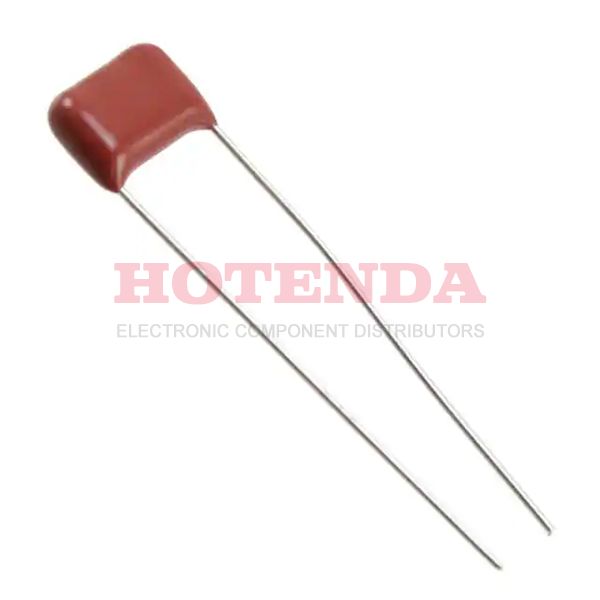

  • ECQ-E2473JFW - ECQ-E(F) 0.047μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole
  • ECQ-E2473JFW - ECQ-E(F) 0.047μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

ECQ-E2473JFW

ECQ-E2473JFW

Panasonic Electronic Components

ECQ-E(F) 0.047μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2473JFW Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2005
Series ECQ-E(F)
Size / Dimension 0.406Lx0.177W 10.30mmx4.50mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 0.047μF
Voltage - Rated DC 250V
Packing Method AMMO PACK
Lead Pitch 7.5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.295 7.50mm
Size Code 4118
Height Seated (Max) 0.492 12.50mm
Length 10.3mm
Width 4.5mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:54366 items

Pricing & Ordering

QuantityUnit PriceExt. Price

ECQ-E2473JFW Product Details

ECQ-E2473JFW Overview


Its lead spacing is 0.295 7.50mm.In addition to operating at -40°C~105°C degrees, the device is capable of operating at other temperatures as well.

ECQ-E2473JFW Features



ECQ-E2473JFW Applications


There are a lot of Panasonic Electronic Components ECQ-E2473JFW applications of film capacitors.

  • Switch mode power supplies
  • Switch-mode power supplies
  • Filtering
  • Electronic ballasts
  • Audio/video equipment
  • IGBT
  • Satellite TV
  • RFI for automotive
  • Coupling, decoupling
  • Matching networks
