ECQ-E2153JF3

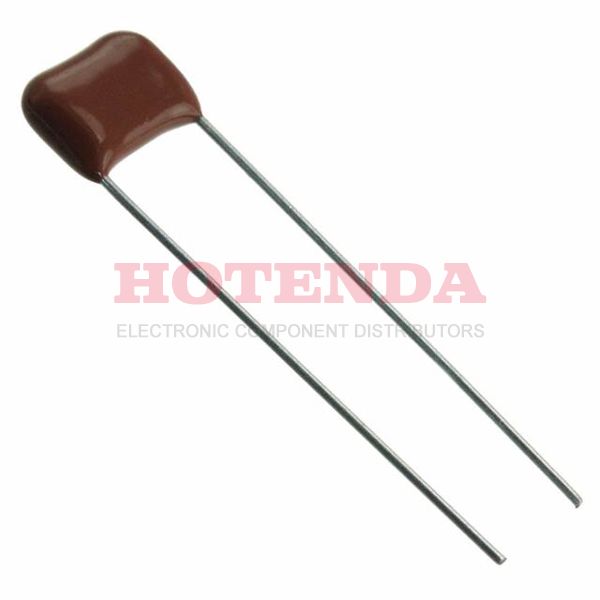

  • ECQ-E2153JF3 - ECQ-E(F) 0.015μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole
  • ECQ-E2153JF3 - ECQ-E(F) 0.015μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

ECQ-E2153JF3

ECQ-E2153JF3

Panasonic Electronic Components

ECQ-E(F) 0.015μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2153JF3 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingTape & Box (TB)
Series ECQ-E(F)
Size / Dimension 0.406Lx0.173W 10.30mmx4.40mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 0.015μF
Voltage - Rated DC 250V
Packing Method AMMO PACK
Lead Pitch 5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.197 5.00mm
Size Code 4117
Height Seated (Max) 0.492 12.50mm
Length 10.3mm
Width 4.4mm
RoHS StatusROHS3 Compliant
In-Stock:52427 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.362000$0.362
10$0.341509$3.41509
100$0.322179$32.2179
500$0.303942$151.971
1000$0.286738$286.738

ECQ-E2153JF3 Product Details

ECQ-E2153JF3 Overview


There is 0.197 5.00mm lead spacing on this electrical device.Temperatures as low as -40°C~105°C are suitable for the device.

ECQ-E2153JF3 Features



ECQ-E2153JF3 Applications


There are a lot of Panasonic Electronic Components ECQ-E2153JF3 applications of film capacitors.

  • Snubbering
  • Satellite TV
  • Mobile communications
  • VCO's
  • Coupling, decoupling
  • RFI for automotive
  • Switch-mode power supplies
  • Compact fluorescent lamps (CFL)
  • Global positioning systems
  • Test and measuring equipment
