QXP2J224KRPT

  • QXP2J224KRPT - QXP 0.22μF Film Capacitor ±10% Radial PC Pins 630V-DC 200V-AC Polypropylene (PP), Metallized Through Hole
  • QXP2J224KRPT - QXP 0.22μF Film Capacitor ±10% Radial PC Pins 630V-DC 200V-AC Polypropylene (PP), Metallized Through Hole

QXP2J224KRPT

QXP2J224KRPT

Nichicon

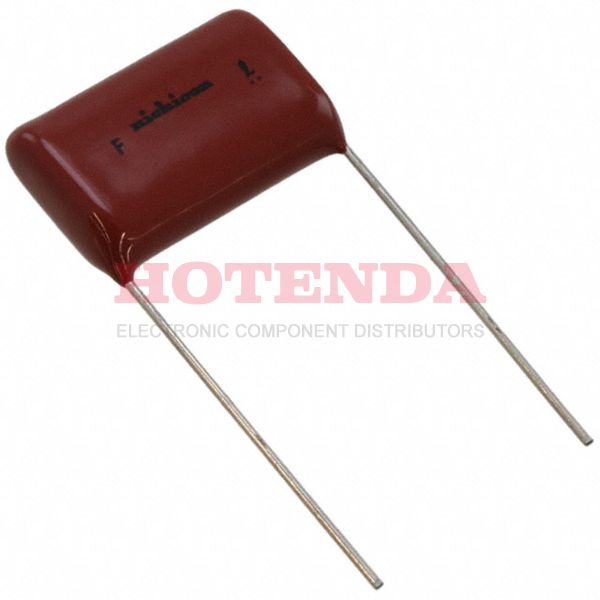

QXP 0.22μF Film Capacitor ±10% Radial PC Pins 630V-DC 200V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

QXP2J224KRPT Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 18 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2009
Series QXP
Size / Dimension 1.043Lx0.354W 26.50mmx9.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications High Frequency, Switching
Capacitance 0.22μF
Voltage - Rated DC 630V
Depth 9mm
Voltage - Rated AC 200V
Lead Pitch 22.5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.886 22.50mm
Lead Diameter 600 μm
Dissipation Factor0.1 %
Lead/Base Style Straight
Height 17.3mm
Height Seated (Max) 0.740 18.80mm
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:2993 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.743931$1.743931
10$1.645217$16.45217
100$1.552092$155.2092
500$1.464237$732.1185
1000$1.381356$1381.356

QXP2J224KRPT Product Details

QXP2J224KRPT Overview


The lead spacing of this electrical device is 0.886 22.50mm.-40°C~105°C is the maximum temperature at which the device can operate.

QXP2J224KRPT Features



QXP2J224KRPT Applications


There are a lot of Nichicon QXP2J224KRPT applications of film capacitors.

  • Lighting
  • Mobile communications
  • RFI for automotive
  • VCO's
  • Blocking
  • Compact fluorescent lamps (CFL)
  • Switch-mode power supplies
  • Snubbering
  • Satellite TV
  • IGBT
