160334K100E-F

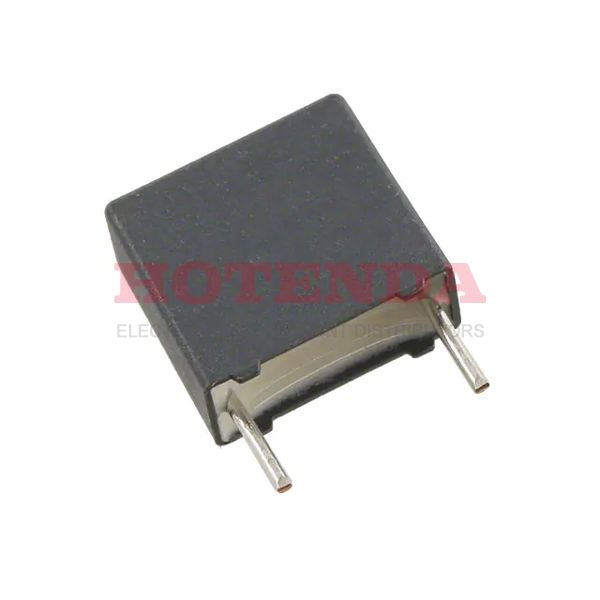

  • 160334K100E-F - 160 0.33μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Metallized Through Hole
  • 160334K100E-F - 160 0.33μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Metallized Through Hole

160334K100E-F

160334K100E-F

Cornell Dubilier Electronics (CDE)

160 0.33μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Metallized Through Hole

SOT-23

160334K100E-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2013
Series 160
Size / Dimension 0.512Lx0.236W 13.00mmx6.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 63
HTS Code8532.25.00.70
Capacitance 0.33μF
Voltage - Rated DC 100V
Terminal Pitch10mm
Voltage - Rated AC 63V
Lead Pitch 10.0076mm
Capacitor Type FILM CAPACITOR
Lead Spacing0.394 10.00mm
Size Code 5124
Height 12mm
Height Seated (Max) 0.472 12.00mm
Length 13mm
RoHS StatusROHS3 Compliant
In-Stock:9314 items

Pricing & Ordering

QuantityUnit PriceExt. Price

160334K100E-F Product Details

160334K100E-F Overview


Its lead spacing is 0.394 10.00mm.The device is capable of operating at the temperature of -55°C~105°C.

160334K100E-F Features



160334K100E-F Applications


There are a lot of Cornell Dubilier Electronics (CDE) 160334K100E-F applications of film capacitors.

  • Filters
  • Switch mode power supplies
  • Filtering
  • RF Modules
  • Mobile communications
  • Global positioning systems
  • VCO's
  • Coupling, decoupling
  • TV and monitor sets
  • RFI for automotive
