B32559C1124K000

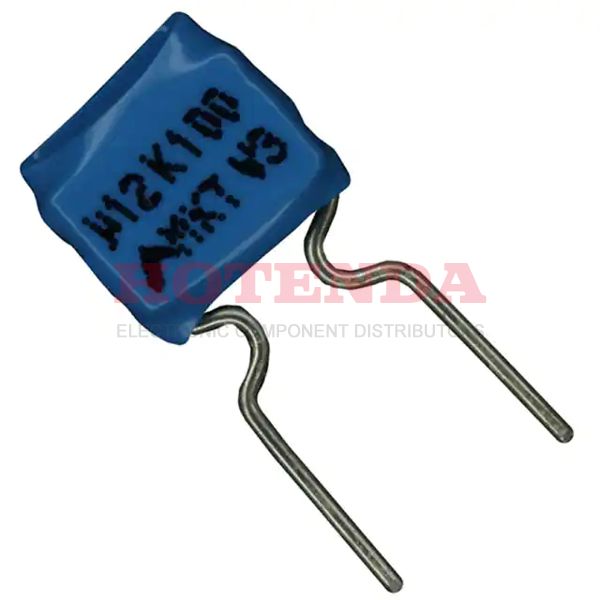

  • B32559C1124K000 - B32559 0.12μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET) - Stacked Through Hole
  • B32559C1124K000 - B32559 0.12μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET) - Stacked Through Hole

B32559C1124K000

B32559C1124K000

TDK Electronics Inc.

B32559 0.12μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET) - Stacked Through Hole

SOT-23

B32559C1124K000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 9 Weeks
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET) - Stacked
Operating Temperature-55°C~125°C
PackagingBulk
Published 2009
Series B32559
Size / Dimension 0.276Lx0.118W 7.00mmx3.00mm
Tolerance ±10%
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Max Operating Temperature125°C
Min Operating Temperature -55°C
Applications High Pulse, DV/DT
Capacitance 0.12μF
Voltage - Rated DC 100V
Voltage - Rated AC 63V
Lead Pitch 5.0038mm
Lead Length 6mm
Lead Spacing0.197 5.00mm
Height 10mm
Height Seated (Max) 0.276 7.00mm
Length 7.0104mm
Width 2.9972mm
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:24472 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.259129$0.259129
10$0.244462$2.44462
100$0.230624$23.0624
500$0.217570$108.785
1000$0.205254$205.254

B32559C1124K000 Product Details

B32559C1124K000 Overview


0.197 5.00mm is the lead spacing of this electrical device.In addition to operating at -55°C~125°C degrees, the device is capable of operating at other temperatures as well.

B32559C1124K000 Features



B32559C1124K000 Applications


There are a lot of TDK Electronics Inc. B32559C1124K000 applications of film capacitors.

  • Filtering
  • Switch-mode power supplies
  • Snubbering
  • Compact fluorescent lamps (CFL)
  • TV and monitor sets
  • RF Modules
  • VCO's
  • Coupling, decoupling
  • Electronic ballasts
  • Global positioning systems
