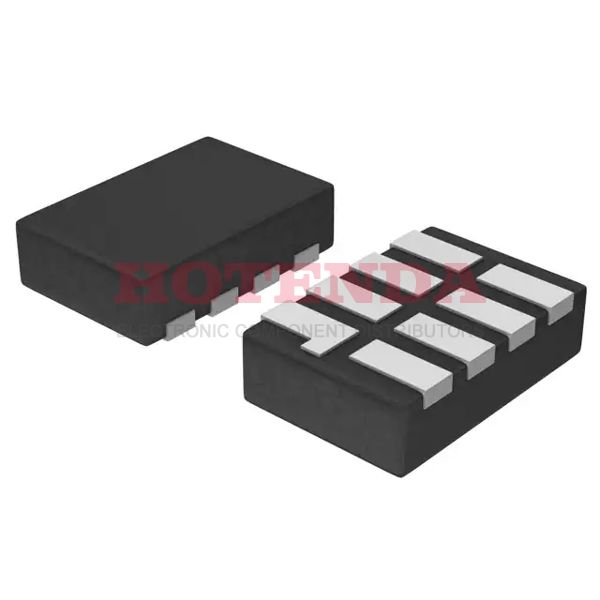

NLX3G14FMUTCG Overview
Shipping overseas is convenient with the part packed in 8-UFDFN. High reliability is provided by advanced packaging method Tape & Reel (TR). Based on the Inverter logic principle, it works. A voltage of 1.65V~5.5V is required for the part to function properly. Increasing operating temperature to around -55°C~125°C. In Surface Mount, the part is mounted. There is 32mA 32mA output current in the high or low states. The MiniGate™ series contains it. Total terminations are 8. User experience is significantly enhanced by the part's 3 functions. The chip is a part of 3G. Try searching with LX3G14 if you're looking for device variants. The part body is injected with 8 pins. This logic device is widely used in a wide variety of applications because it is Surface Mount mounted. For functions related to 8 pins, please refer to the datasheets. The part has 1μA current flowing through it in the quiescent state. There are 3 circuits in this device. 15pF is the load capacitance of the part. A minimum voltage of 1.65V is required to supply the device. 5.5V is the maximum supply voltage (Vsup). The industry TAPE AND REEL method is included. Among its features are Schmitt Trigger.
NLX3G14FMUTCG Features
Inverter Logic Type
Operating Temperature: -55°C~125°C
3G Family
Quiescent Current: 1μA
NLX3G14FMUTCG Applications
There are a lot of ON Semiconductor
NLX3G14FMUTCG Gates and Inverters applications.
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
