74LV08N,112 Overview

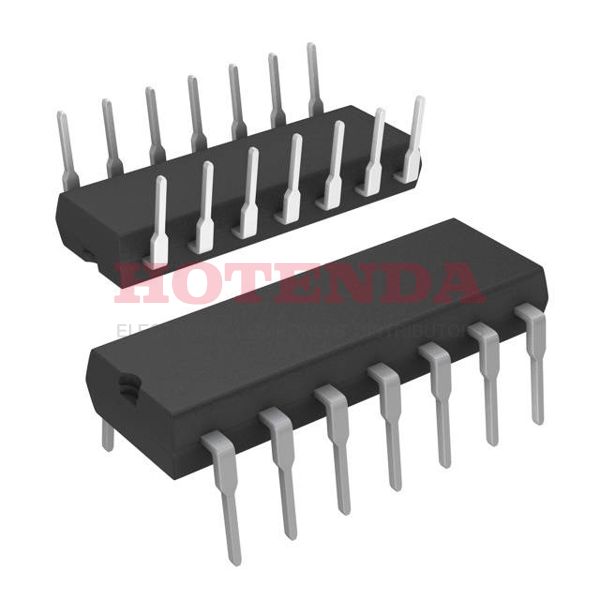

The part can be shipped overseas conveniently because it is packaged in 14-DIP (0.300, 7.62mm). In order to provide high reliability, an advanced packaging method Tube is used. As a result, it works on the principle of AND Gate. The part must have a voltage of 1V~5.5V in order to function properly. Operating temperature around -40°C~125°C extended. Through Hole is the mounting position of the part. In the low and high states of output current, the current is 12mA 12mA. This is part of the 74LV series. In total, there are 14 terminations. 4 functions in the part enhance the user experience significantly. The chip is part of the LV/LV-A/LVX/H family. Use 74LV08 to search for device variants. There are 14 pins injected into the part body. There are 2 inputs on this part. A total of 4 circuits make up this device. It has a load capacitance of 50pF. Devices require a minimum voltage of 1V. As soon as Vsup reaches 5.5V, the maximal supply voltage (Vsup) is reached. The datasheet specifies that the part requires 3.3V volts of power. In standby mode, the maximum current is 40μA.
74LV08N,112 Features
AND Gate Logic Type
Operating Temperature: -40°C~125°C
LV/LV-A/LVX/H Family
74LV08N,112 Applications
There are a lot of NXP USA Inc.
74LV08N,112 Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
