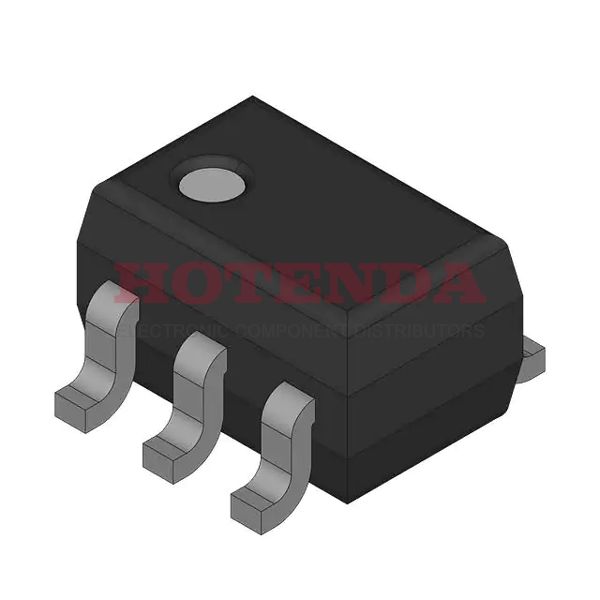

NC7S86P5 Overview
The part is convenient to ship overseas because it is packed in a 5-TSSOP, SC-70-5, SOT-353. The advanced packaging method Tape & Reel (TR) provides high reliability. A XOR (Exclusive OR) logic principle governs its operation. Voltage 2V~6V is needed to ensure the part's full functionality. Operational temperature extended around -40°C~85°C. Mounted in Surface Mount. Output current is 2.6mA 2.6mA in the high and low states. 7S is the series it belongs to. The total number of terminations is 5. There are 1 functions that significantly improve the user experience. As part of HC/UH, this chip is used. Try searching with 7S86 to find device variants. Logic devices with Surface Mount mounting are widely used in many applications. Datasheets for functions of 5 pins are available. Inputs are limited to 2. Quiescent parts have 1μA current flowing through them. To supply the device, it requires a voltage of 2V. Vsup reaches its maximum value at 6V. The method TAPE AND REEL is packed into it. 1 gates are used in logical operations.
NC7S86P5 Features
XOR (Exclusive OR) Logic Type
Operating Temperature: -40°C~85°C
HC/UH Family
Quiescent Current: 1μA
1 Gates
