74AUP2G04GW-Q100H Overview

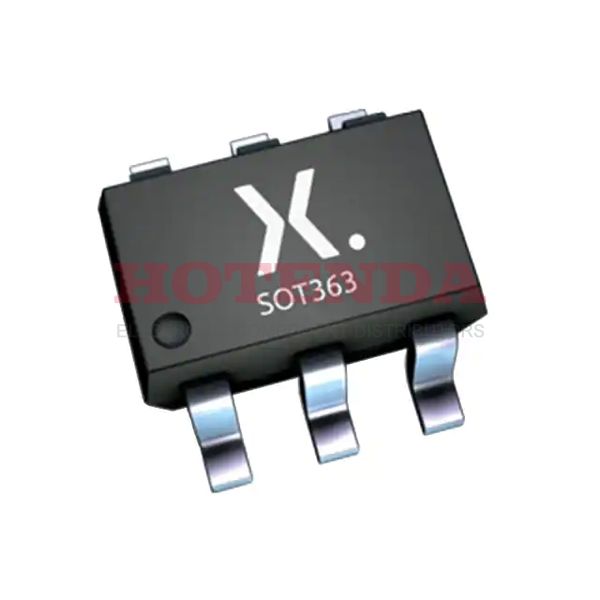

Shipped in 6-TSSOP, SC-88, SOT-363, the part is easy to ship overseas. High reliability is ensured by the advanced packaging method Tape & Reel (TR). Using Inverter logic, it functions. In order for the part to function correctly, a voltage of 0.8V~3.6V is required. Temperatures around -40°C~125°C are extended for operation. Surface Mount is the location of the part. 4mA 4mA output current is 4mA 4mA in the high or low state. There are several in the Automotive, AEC-Q100, 74AUP series. Many applications include this logic device with a Surface Mount mounting. A 2 input is supported by the part. The current flowing through quiet parts is 500nA. The circuits in this device number 2. As long as the standby mode is on, 500nA current is drawn. There is a SC-88 package available from suppliers. In environments with temperatures above 125°C, the device should be avoided. Test statistics indicate that the part would operate at -40°C degrees Celsius. normally, users should not supply the device with voltage higher than 3.6V. It is recommended to use 800mV as the lowest voltage for the part.
74AUP2G04GW-Q100H Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
Quiescent Current: 500nA
74AUP2G04GW-Q100H Applications
There are a lot of Nexperia USA Inc.
74AUP2G04GW-Q100H Gates and Inverters applications.
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
- Cell phone
- Laptop
- Digital camera
