CD40175BCN Overview

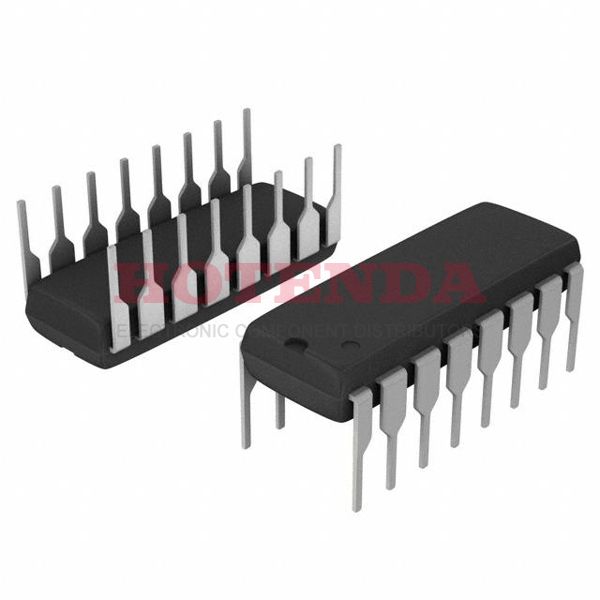

The flip flop is packaged in 16-DIP (0.300, 7.62mm). The Tubepackage contains it. The output it is configured with uses Differential. It is configured with a trigger that uses a value of Positive Edge. Through Holeis in the way of this electric part. Powered by a 3V~15Vvolt supply, it operates as follows. It is at -55°C~125°C TAdegrees Celsius that the system is operating. The type of this D latch is D-Type. FPGAs belonging to the 4000Bseries contain this type of chip. This D flip flop should not have a frequency greater than 12MHz. D latch consists of 1 elements. There is a consumption of 4μAof quiescent energy. The object belongs to the 40175 family. Its input capacitance is 10pF farads.
CD40175BCN Features
Tube package
4000B series
CD40175BCN Applications
There are a lot of ON Semiconductor CD40175BCN Flip Flops applications.
- Digital electronics systems
- Functionally equivalent to the MC10/100EL29
- 2 – Bit synchronous counter
- Load Control
- EMI reduction circuitry
- Registers
- Test & Measurement
- Storage registers
- Computing
- Control circuits
