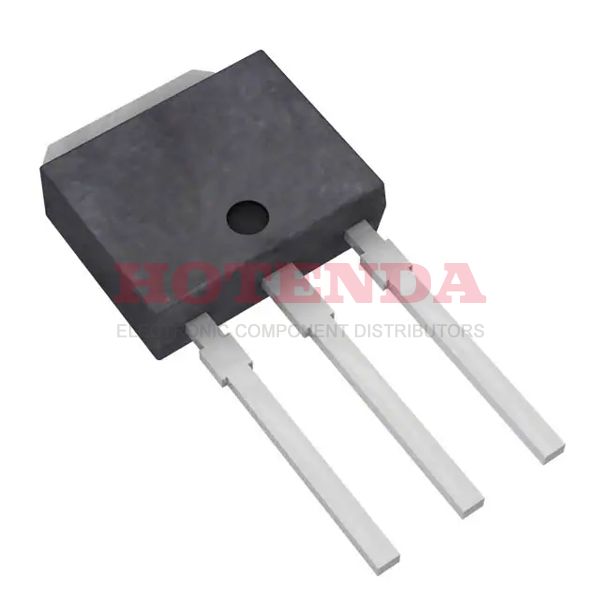

2SD1801S-E Overview
In this device, the DC current gain is 140 @ 100mA 2V, which is the ratio between the base current and the collector current.As a result of vce saturation, Ic reaches its maximum value (saturated), and vce saturation(Max) is 400mV @ 50mA, 1A.Keeping the emitter base voltage at 6V can result in a high level of efficiency.In extreme cases, the collector current can be as low as 2A volts.
2SD1801S-E Features
the DC current gain for this device is 140 @ 100mA 2V
the vce saturation(Max) is 400mV @ 50mA, 1A
the emitter base voltage is kept at 6V
2SD1801S-E Applications
There are a lot of ON Semiconductor 2SD1801S-E applications of single BJT transistors.
- Inverter
- Interface
- Muting
- Driver
