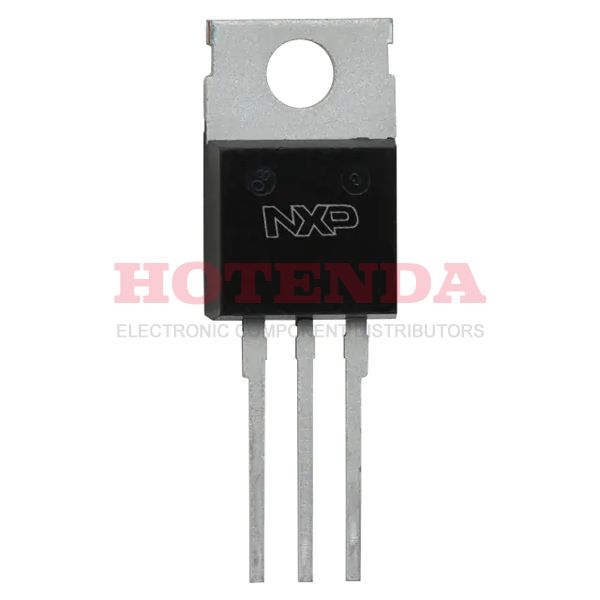

Name: PHP45N03LTA,127
Brand: NXP USA Inc.
SKU: PHP45N03LTA,127
Availability: InStock

new-10%

PHP45N03LTA,127

Manufacturer part number:PHP45N03LTA,127

Manufacturer:NXP USA Inc.

Description:MOSFET N-CH 25V 40A TO220AB

Case Package:SOT-23

Datasheet:PHP45N03LTA,127 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	TO-220-3
Surface Mount	NO
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Series	TrenchMOS™
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
JESD-30 Code	R-PSFM-T3
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	65W Tc
Operating Mode	ENHANCEMENT MODE
Case Connection	DRAIN
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	21m Ω @ 25A, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds	700pF @ 25V
Current - Continuous Drain (Id) @ 25°C	40A Tc
Gate Charge (Qg) (Max) @ Vgs	19nC @ 5V
Drain to Source Voltage (Vdss)	25V
Drive Voltage (Max Rds On,Min Rds On)	3.5V 10V
Vgs (Max)	±20V
JEDEC-95 Code	TO-220AB
Drain Current-Max (Abs) (ID)	40A
Drain-source On Resistance-Max	0.024Ohm
Pulsed Drain Current-Max (IDM)	160A
DS Breakdown Voltage-Min	25V
Avalanche Energy Rating (Eas)	40 mJ
RoHS Status	ROHS3 Compliant

About PHP45N03LTA,127

The PHP45N03LTA,127 from NXP USA Inc. is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 25V 40A TO220AB.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the PHP45N03LTA,127, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
