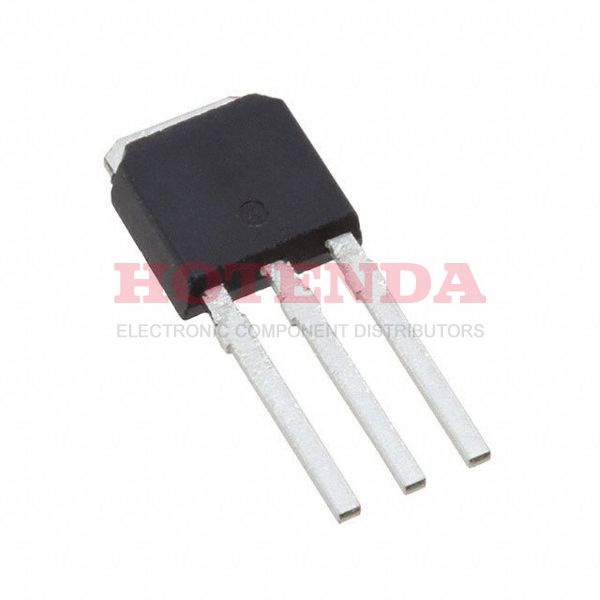

IRLU8203PBF

Manufacturer part number:IRLU8203PBF

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 30V 110A I-PAK

Case Package:SOT-23

Datasheet:IRLU8203PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Number of Pins	4
Supplier Device Package	I-PAK
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2002
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Resistance	6.8mOhm
Max Operating Temperature	175°C
Min Operating Temperature	-55°C
Voltage - Rated DC	30V
Technology	MOSFET (Metal Oxide)
Current Rating	110A
Number of Elements	1
Power Dissipation-Max	140W Tc
Element Configuration	Single
Power Dissipation	140W
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	6.8mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	2430pF @ 15V
Current - Continuous Drain (Id) @ 25°C	110A Tc
Gate Charge (Qg) (Max) @ Vgs	50nC @ 4.5V
Rise Time	99ns
Drain to Source Voltage (Vdss)	30V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Fall Time (Typ)	69 ns
Turn-Off Delay Time	30 ns
Continuous Drain Current (ID)	110A
Threshold Voltage	3V
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	30V
Dual Supply Voltage	30V
Input Capacitance	2.43nF
Drain to Source Resistance	9mOhm
Rds On Max	6.8 mΩ
Nominal Vgs	3 V
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free
