Name: IPI60R600CPAKSA1
Brand: Infineon Technologies
SKU: IPI60R600CPAKSA1
Availability: InStock

new-10%

IPI60R600CPAKSA1

Manufacturer part number:IPI60R600CPAKSA1

Manufacturer:Infineon Technologies

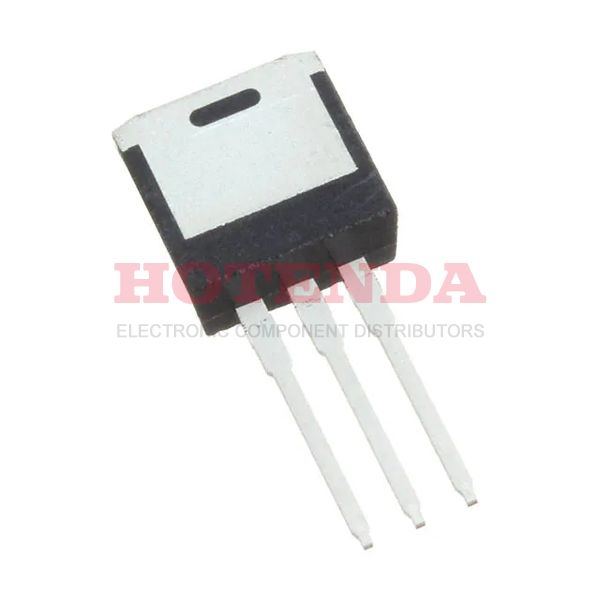

Description:Trans MOSFET N-CH 600V 6.1A 3-Pin(3+Tab) TO-262

Case Package:SOT-23

Datasheet:IPI60R600CPAKSA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	TO-262-3 Long Leads, I2Pak, TO-262AA
Surface Mount	NO
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tube
Published	2011
Series	CoolMOS™
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Technology	MOSFET (Metal Oxide)
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	compliant
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
JESD-30 Code	R-PSIP-T3
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	60W Tc
Operating Mode	ENHANCEMENT MODE
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	600m Ω @ 3.3A, 10V
Vgs(th) (Max) @ Id	3.5V @ 220μA
Input Capacitance (Ciss) (Max) @ Vds	550pF @ 100V
Current - Continuous Drain (Id) @ 25°C	6.1A Tc
Gate Charge (Qg) (Max) @ Vgs	27nC @ 10V
Drain to Source Voltage (Vdss)	600V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Drain Current-Max (Abs) (ID)	6.1A
Drain-source On Resistance-Max	0.6Ohm
Pulsed Drain Current-Max (IDM)	15A
DS Breakdown Voltage-Min	600V
Avalanche Energy Rating (Eas)	144 mJ
RoHS Status	RoHS Compliant

About IPI60R600CPAKSA1

The IPI60R600CPAKSA1 from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features Trans MOSFET N-CH 600V 6.1A 3-Pin(3+Tab) TO-262.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IPI60R600CPAKSA1, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
