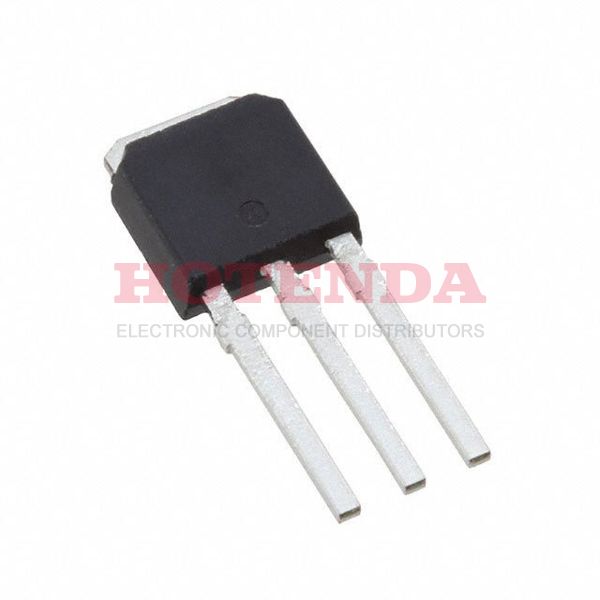

Name: IRLU3114ZPBF
Brand: Infineon Technologies
SKU: IRLU3114ZPBF
Availability: InStock

new-10%

IRLU3114ZPBF

Manufacturer part number:IRLU3114ZPBF

Manufacturer:Infineon Technologies

Description:IRLU3114ZPBF datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website

Case Package:SOT-23

Datasheet:IRLU3114ZPBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Number of Pins	3
Supplier Device Package	I-PAK
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2007
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	175°C
Min Operating Temperature	-55°C
Technology	MOSFET (Metal Oxide)
Number of Elements	1
Power Dissipation-Max	140W Tc
Power Dissipation	140W
Turn On Delay Time	25 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	4.9mOhm @ 42A, 10V
Vgs(th) (Max) @ Id	2.5V @ 100μA
Input Capacitance (Ciss) (Max) @ Vds	3810pF @ 25V
Current - Continuous Drain (Id) @ 25°C	42A Tc
Gate Charge (Qg) (Max) @ Vgs	56nC @ 4.5V
Rise Time	140ns
Drain to Source Voltage (Vdss)	40V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±16V
Fall Time (Typ)	50 ns
Turn-Off Delay Time	33 ns
Continuous Drain Current (ID)	130A
Threshold Voltage	2.5V
Gate to Source Voltage (Vgs)	16V
Drain to Source Breakdown Voltage	40V
Input Capacitance	3.81nF
Drain to Source Resistance	6.5mOhm
Rds On Max	4.9 mΩ
Height	6.22mm
Length	6.7056mm
Width	2.3876mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant

IRLU3114ZPBF Product Details

IRLU3114ZPBF Description

This HEXFET power MOSFET uses the latest technology to achieve extremely low on-resistance per silicon area. Other features of the design include a 175 °C junction operating temperature, fast switching speed and an improved repeated avalanche rating. The combination of these functions makes the design an extremely efficient and reliable device for use in a variety of applications.
