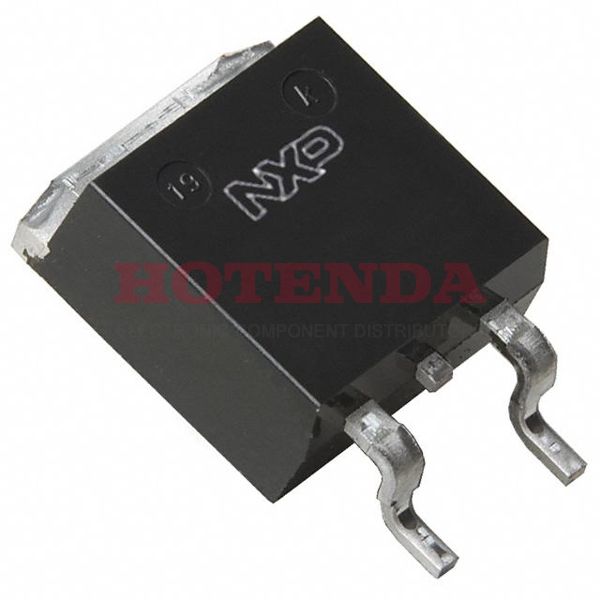

BUK9620-100A,118 Overview
When a voltage exceeds breakdown voltage of a MOSFET, breakdown phenomena occurs and current flows. It's called “Avalanche break down”, and the energy applied to the MOSFET is called avalanche energy, and the avalanche energy rating (Eas) is 420 mJ.The input capacitance parameter, CI, is defined as the capacitance between the input terminals of an op amp with either input grounded, and this device's maximal input capacitance is 6385pF @ 25V.The drain current is the maximum continuous current the device can conduct, and the drain current of this device is 63A.IDM is the maximum rated peak drain current for a power MOSFET, and its maximal pulsed drain current is 253A.Single MOSFETs transistor is recommended that the DS breakdown voltage be kept above 100V in order to maintain normal operation.Operating this transistor requires a 100V drain to source voltage (Vdss).By using drive voltage (4.5V 10V), this device helps reduce its overall power consumption.
BUK9620-100A,118 Features
the avalanche energy rating (Eas) is 420 mJ
based on its rated peak drain current 253A.
a 100V drain to source voltage (Vdss)
BUK9620-100A,118 Applications
There are a lot of NXP USA Inc.
BUK9620-100A,118 applications of single MOSFETs transistors.
- LCD/LED TV
- Consumer Appliances
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
