Name: IRF5804
Brand: Infineon Technologies
SKU: IRF5804
Availability: InStock

new-10%

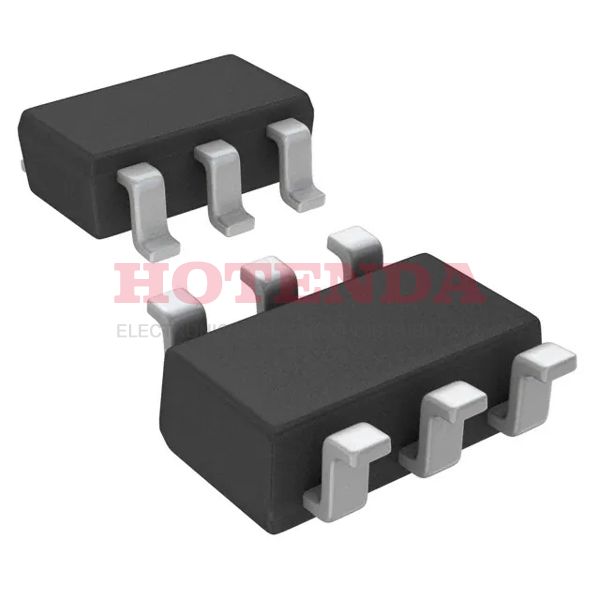

IRF5804

Manufacturer part number:IRF5804

Manufacturer:Infineon Technologies

Description:MOSFET P-CH 40V 2.5A 6-TSOP

Case Package:SOT-23

Datasheet:IRF5804 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Surface Mount	YES
Packaging	Tube
Published	2005
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Subcategory	Other Transistors
Technology	MOSFET (Metal Oxide)
Operating Temperature (Max)	150°C
Configuration	Single
Power Dissipation-Max	2W Ta
Operating Mode	ENHANCEMENT MODE
FET Type	P-Channel
Rds On (Max) @ Id, Vgs	198m Ω @ 2.5A, 10V
Vgs(th) (Max) @ Id	3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	680pF @ 25V
Current - Continuous Drain (Id) @ 25°C	2.5A Ta
Gate Charge (Qg) (Max) @ Vgs	21nC @ 10V
Drain to Source Voltage (Vdss)	40V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Drain Current-Max (Abs) (ID)	2.5A
RoHS Status	Non-RoHS Compliant
