Name: 2N7002PS,115
Brand: Nexperia USA Inc.
SKU: 2N7002PS,115
Price: 0.47000 USD
Availability: InStock

new-10%

2N7002PS,115

Manufacturer part number:2N7002PS,115

Manufacturer:Nexperia USA Inc.

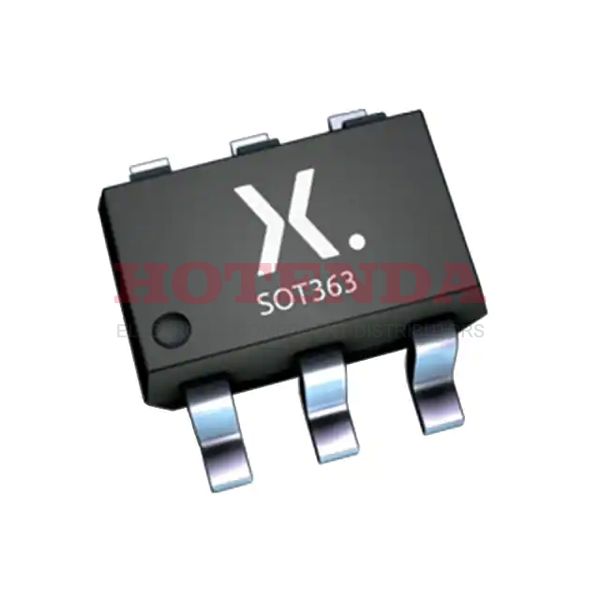

Description:MOSFET 2N-CH 60V 0.32A 6TSSOP

Case Package:SOT-23

Datasheet:2N7002PS,115 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Surface Mount	YES
Number of Pins	6
Transistor Element Material	SILICON
Operating Temperature	150°C TJ
Packaging	Cut Tape (CT)
Published	2010
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
Resistance	1.6Ohm
Additional Feature	LOGIC LEVEL COMPATIBLE
Max Power Dissipation	420mW
Terminal Form	GULL WING
Pin Count	6
Number of Elements	2
Element Configuration	Dual
Operating Mode	ENHANCEMENT MODE
Power Dissipation	320mW
Turn On Delay Time	3 ns
Power - Max	420mW
FET Type	2 N-Channel (Dual)
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	1.6 Ω @ 500mA, 10V
Vgs(th) (Max) @ Id	2.4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 10V
Gate Charge (Qg) (Max) @ Vgs	0.8nC @ 4.5V
Rise Time	4ns
Fall Time (Typ)	4 ns
Turn-Off Delay Time	10 ns
Continuous Drain Current (ID)	320mA
Gate to Source Voltage (Vgs)	20V
Max Dual Supply Voltage	60V
Drain to Source Breakdown Voltage	60V
FET Technology	METAL-OXIDE SEMICONDUCTOR
FET Feature	Logic Level Gate
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

2N7002PS,115 Product Details

Description:

The Nexperia 2N7002PS,115 is a MOSFET array with two N-channel MOSFETs in a 6-pin TSSOP package. It has a maximum drain-source voltage of 60V and a maximum drain current of 0.32A. It is designed for use in low-voltage, low-power applications.

Features:

• Low on-resistance
• Low gate charge
• Low input capacitance
• Low threshold voltage
• High-speed switching
• High-temperature operation
• RoHS compliant

Applications:

The Nexperia 2N7002PS,115 is suitable for a wide range of applications, including:

• Automotive
• Industrial
• Consumer electronics
• Power management
• Lighting
• Motor control
• Battery management
