PL102-10TC Overview

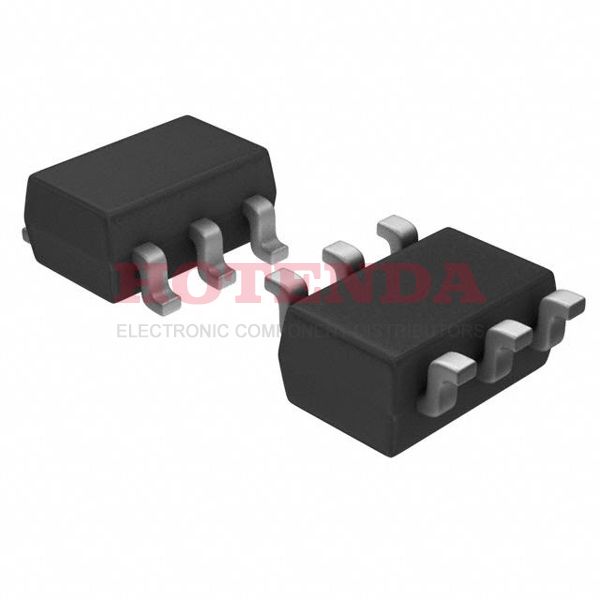

It is packaged using the Tube method since it is a clock IC. There is a clock generator embedded in the SOT-23-6 package. It contains 6 terminations that can be found in frequency synthesizer. This electronic frequency generator requires a voltage of 2.5V. It is designed that the Clock PLL's input should be Clock. To access the electronic component's full performance, 1 circuits are implemented. The frequency generator has a maximum frequency of 170MHz. Due to the Surface Mount-shape, this electronic component can be conveniently installed on the panel. This clock generator would require a maximum supply voltage of 3.63V. It is safe to use this frequency synthesizer with a supply voltage above 2.25V. There are 2.25V~3.63V available for use with this clock PLL. The ambient temperature should be set at 0°C~70°C, which is estimated by the test statistics. The related electronic parts of part number PL102 are listed below. Low timing skew is provided by this analog clock generator at maximum 0.2 ns. Analog clock generator is configured with 2 pins that enable the high true output.
PL102-10TC Features
Available in the SOT-23-6
Supply voltage of 2.5V
2 true outputs
PL102-10TC Applications
There are a lot of Microchip Technology PL102-10TC Clock Generators applications.
- Radar
- Space communucation
- Bit synchronization
- Antenna automatic tracking
- Pulsed digital systems
- CPUs
- FM demodulation networks for FM operations
- Aerospace and defense
- Remote telemetry and instrumentation
- Clock signals to the high-speed Digital RF circuits
