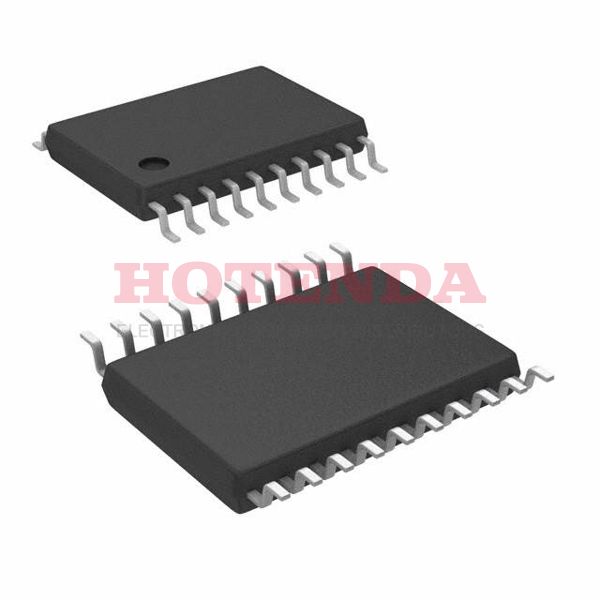

270PGLF Overview
As a clock IC, it uses the Tube package. A Clock PLL is included with the 20-TSSOP (0.173, 4.40mm Width) package. The input of this clock generator is designed to be Crystal. An implementation of 1 circuits is required in order to fully utili1e the capabilities of the electrical part. An upper frequency limit of 200MHz Max can be achieved with this clock-based frequency synthesizer. PLL clock is mounted in the way of Surface Mount. In terms of supply voltage, RF synthesizer works with 3.135V~3.465V. As determined by the test statistics, the ambient temperature should be set to 0°C~70°C. A frequency synthesizer which is compatible with the CMOS logic levels is presented here. As far as electrical parts go, this component can be classified as a Clock/Frequency Synthesizer, Fanout Buffer (Distribution) component. These related electrical parts are available for the base part number ICS270. This electronic part is a member of the VersaClock? series.
270PGLF Features
Available in the 20-TSSOP (0.173, 4.40mm Width)
270PGLF Applications
There are a lot of Renesas Electronics America Inc. 270PGLF Clock Generators applications.
- Precision auxiliary angle deflection measurement
- Signal frequency synthesis circuits
- Threshold extension
- Time to digital converters
- Cellular/4G
- Radar
- Line cards used in telephone exchange
- CPUs
- Motor speed controls
- Aerospace and defense
