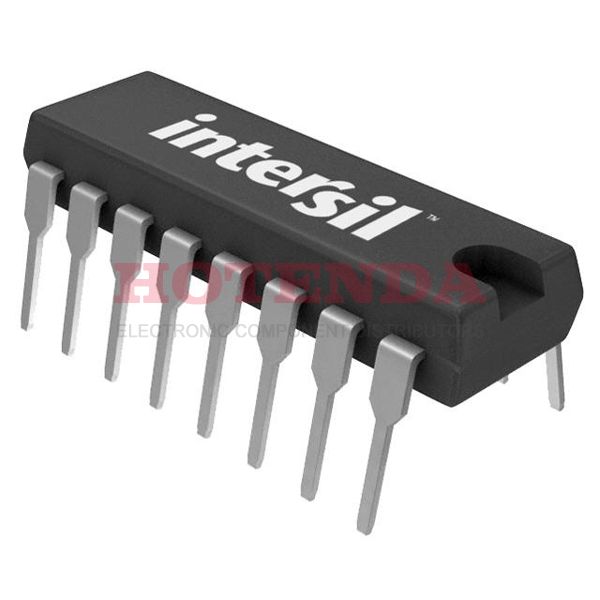

HD3-4702-9Z Overview
Clock ICs are packaged using the Tube method. A Clock PLL is included with the 16-DIP (0.300, 7.62mm) package. Clock, Crystal is designed for clock generator's input. For full access to the electronic component's capabilities, 1 circuits are implemented. It provides a maximum frequency of 1MHz. Due to the Through Hole-shape, this electronic component can be conveniently installed on the panel. There should be 4.5V~5.5V provided with this RF synthesizer. Based on the test statistics, an ambient temperature of -40°C~85°C should be set. There are several logic levels in Clock logic that can be used with this clock generator. This is an electronic part that can be classified as a Bit Rate Generator in this case. This part number HD-4702 is related to the following electrical components.
HD3-4702-9Z Features
Available in the 16-DIP (0.300, 7.62mm)
HD3-4702-9Z Applications
There are a lot of Renesas Electronics America Inc. HD3-4702-9Z Clock Generators applications.
- Satellite receivers
- Multi-function printers
- Camera systems
- Electronic countermeasures
- Wireless handsets
- Antenna automatic tracking
- 1 Gigabit Ethernet
- Microwave radio
- Simple clock clean-up circuits
- Myriad digital applications
