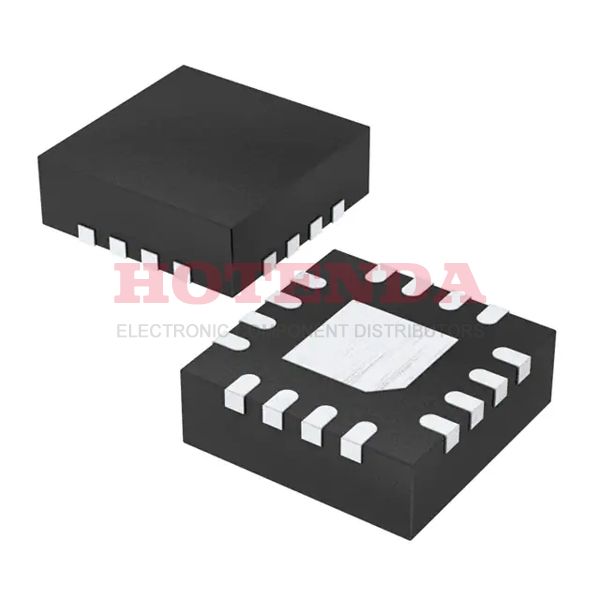

NB7V32MMNG Overview
As a clock IC, it uses the Tube package. 16-VFQFN Exposed Pad contains this Clock PLL. As a result, frequency synthesizers can be found to contain 16 terminations. For this clock generator ic, a voltage of 1.8V is required. This Clock PLL will be fed by CML, LVDS, LVPECL as its input. There are 1 circuits implemented in order to achieve full performance from this electronic part. Providing a maximum frequency of 10GHz, this clock-based RF synthesizer is suitable for a variety of applications. The Surface Mount allows this electrical component to be easily installed on the panel. There are 1.71V~2.625V different supply voltages that can be provided for this RF synthesizer. Based on test statistics, ambient temperature should be set at -40°C~85°C. I would like to present to you a frequency synthesizer that is compatible with CML logic levels. This is an electronic part that can be classified as a Clock Divider in this case. In particular, this clock PLL is designed to be used with microprocessors. NB7V32M is the base part number for finding related electronic parts. There is a 16 pin that is available on the digital clock generator. Prescaler/Multivibrators-type frequency generators are usually classified as this type. A member of the GigaComm™ series, this electronic component is made of plastic. 2 signal outputs allow for maximi2ation of output frequency. At 0.05 ns Max, this analog clock generator exhibits low timing skew. The 7V family of parts can be used to find electric parts that are similar to each other.
NB7V32MMNG Features
Available in the 16-VFQFN Exposed Pad
Supply voltage of 1.8V
NB7V32MMNG Applications
There are a lot of ON Semiconductor
NB7V32MMNG Clock Generators applications.
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
- Infotainment systems
- Medical equipment
- Multi-function printers
