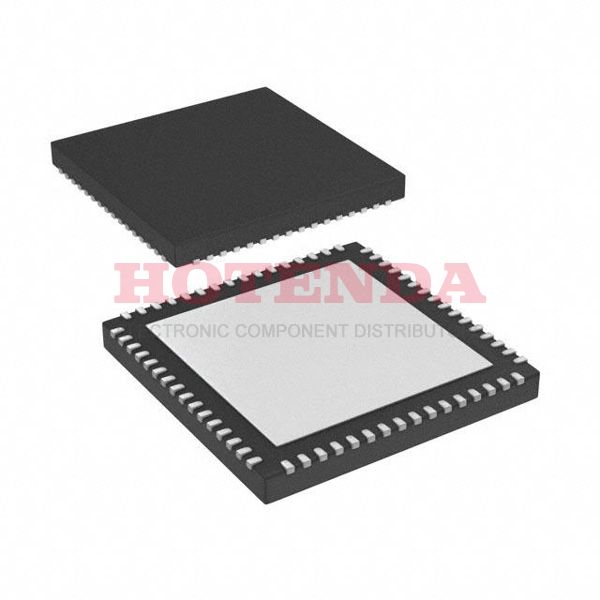

Name: PIC16F19196T-I/MR
Brand: Microchip Technology
SKU: PIC16F19196T-I/MR
Availability: InStock

new-10%

PIC16F19196T-I/MR

Manufacturer part number:PIC16F19196T-I/MR

Manufacturer:Microchip Technology

Description:28KB 16K x 14 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 16F Series PIC16F19196 3V 64-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC16F19196T-I/MR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	64-QFN (9x9)
Data Converters	A/D 45x12b, D/A 1x5b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	PIC16F19196
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Cut Tape (CT)
Series	PIC® XLP™ 16F
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Terminal Finish	Matte Tin (Sn) - annealed
Additional Feature	ALSO OPEARTES AT 16 MHZ AT 2.3V MINIMUM SUPPLY
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	3V
Terminal Pitch	0.5mm
Base Part Number	PIC16F19196
JESD-30 Code	S-PQCC-N64
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	2.5V
Oscillator Type	Internal
Number of I/O	59
Speed	32MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	2.3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, LCD, POR, PWM, WDT
Clock Frequency	32MHz
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	28KB 16K x 14
Connectivity	I2C, LINbus, SPI, UART/USART
Bit Size	8
Data Converter	A/D 45x12b; D/A 1x5b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	YES
EEPROM Size	256 x 8
On Chip Program ROM Width	14
Screening Level	TS 16949
Length	9mm
Height Seated (Max)	1mm
Width	9mm
RoHS Status	ROHS3 Compliant

PIC16F19196T-I/MR Product Details

PIC16F19196T-I/MR Overview

There is a 64-VFQFN Exposed Pad package available. The board has 59 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. PIC® XLP™ 16F-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 28KB 16K x 14. Powered by a PIC Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 64. As a result, this Microcontroller comes with a 8-bit size. Input voltage for the chip is 3V volts. A total of NO DMA channels are available. There are a number of alternatives to the base part number PIC16F19196 that you can find. Using YES PWM channels, the device works. As far as the clock frequency is concerned, it operates at 32MHz clock speed. In addition to these features, there are a number of other ones, such as this one: ALSO OPEARTES AT 16 MHZ AT 2.3V MINIMUM SUPPLY.
