Name: AT90S8515-8PC
Brand: Microchip Technology
SKU: AT90S8515-8PC
Availability: InStock

new-10%

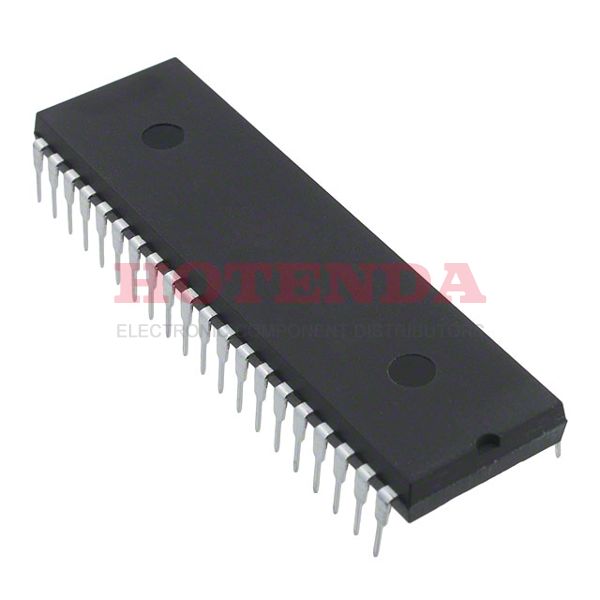

AT90S8515-8PC

Manufacturer part number:AT90S8515-8PC

Manufacturer:Microchip Technology

Description:8KB 4K x 16 FLASH AVR 8-Bit Microcontroller AVR® 90S Series AT90S8515 8 MHz 40-DIP (0.600, 15.24mm)

Case Package:SOT-23

Datasheet:AT90S8515-8PC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	40-DIP (0.600, 15.24mm)
Surface Mount	NO
Supplier Device Package	40-PDIP
Number of Terminals	40
Data Converters	--
RoHS	Non-Compliant
Package	Tube
Base Product Number	AT90S8515
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	RECTANGULAR
Manufacturer	Atmel Corporation
Number of I/O Lines	32
Operating Temperature	0°C~70°C TA
Packaging	Tube
Series	AVR® 90S
Published	2001
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Terminal Finish	Tin/Lead (Sn/Pb)
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
HTS Code	8542.31.00.01
Subcategory	Microcontrollers
Technology	CMOS
Terminal Position	DUAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Reach Compliance Code	unknown
Frequency	8 MHz
Base Part Number	AT90S8515
Pin Count	40
JESD-30 Code	R-PDIP-T40
Qualification Status	Not Qualified
Power Supplies	3/5 V
Temperature Grade	COMMERCIAL
Interface	SPI, UART
Max Supply Voltage	6 V
Min Supply Voltage	4 V
Memory Size	8 kB
Oscillator Type	Internal
Number of I/O	32
Speed	8MHz
RAM Size	512 x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	4V~6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	8KB 4K x 16
Connectivity	SPI, UART/USART
Bit Size	8
Access Time	8 µs
Has ADC	NO
DMA Channels	NO
Data Bus Width	8 b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	4.83 mm
Number of Timers/Counters	2
Address Bus Width	16
ROM (words)	4096
Core Architecture	AVR
EEPROM Size	512 x 8
CPU Family	AVR RISC
Max Frequency	8 MHz
External Data Bus Width	8
Number of Programmable I/O	32
RAM (bytes)	512
ROM Programmability	FLASH
Width	15.24 mm
Length	52.325 mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

AT90S8515-8PC Product Details

AT90S8515-8PC Overview

40-DIP (0.600, 15.24mm)-packages are available. There are 32 I/O ports on this device. Device mounting type Through Hole is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of 0°C~70°C TA for this Microcontroller. An electrical component of this type belongs to the AVR® 90S series. This program memory has a size of 8KB 4K x 16, which indicates what the size of the program memory is. AVR Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. You get a 8-bit size. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 8 kB. The base part number AT90S8515 provides alternatives. This device is extremely efficient when operated at a frequency of 8 MHz. Using the PWM channel YES, the device works with the motor. Using the timer/counter system, it has 2 timers/counters. It has 40 pins in total. In addition to this, the device is embedded with the the AVR RISC CPU family. There is FLASH memory in this equipment. As a result of its AVR core architecture, it can be used in many applications. This device has 32 programmable input and output channels.
