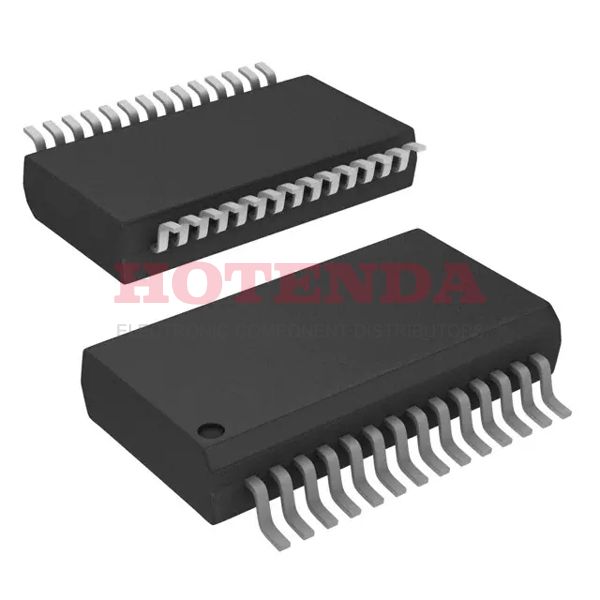

Name: PIC16LC62A-04I/SS
Brand: Microchip Technology
SKU: PIC16LC62A-04I/SS
Availability: InStock

new-10%

PIC16LC62A-04I/SS

Manufacturer part number:PIC16LC62A-04I/SS

Manufacturer:Microchip Technology

Description:3.5KB 2K x 14 OTP PIC 8-Bit Microcontroller PIC® 16C Series PIC16LC62A 28 Pin 4MHz 5V 28-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:PIC16LC62A-04I/SS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mounting Type	Surface Mount
Package / Case	28-SSOP (0.209, 5.30mm Width)
Surface Mount	YES
Number of Pins	28
Supplier Device Package	28-SSOP
Interfaces	I2C/SPI/USART
Number of I/Os	22
RoHS	Compliant
Package	Tube
Base Product Number	PIC16LC62
Mfr	Microchip Technology
Data Converters	-
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® 16C
Published	1997
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Max Power Dissipation	1W
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.65mm
Frequency	4MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16LC62A
Pin Count	28
Supply Voltage-Max (Vsup)	6V
Supply Voltage-Min (Vsup)	2.5V
Interface	I2C, SPI, USART
Max Supply Voltage	6 V
Min Supply Voltage	2.5 V
Memory Size	3.5kB
Oscillator Type	External
Number of I/O	22
Speed	4MHz
RAM Size	128 x 8
Memory Type	OTP
Voltage - Supply (Vcc/Vdd)	2.5V~6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	OTP
Core Size	8-Bit
Program Memory Size	3.5KB 2K x 14
Connectivity	I2C, SPI
Bit Size	8
Watchdog Timer	Yes
Access Time	4 μs
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
DAC Channels	NO
Number of Timers/Counters	3
ROM (words)	2048
Core Architecture	PIC
EEPROM Size	-
On Chip Program ROM Width	14
CPU Family	PIC
Max Frequency	4 MHz
Number of Programmable I/O	22
Device Core	PIC
Length	10.2mm
Height Seated (Max)	1.99mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC16LC62A-04I/SS Product Details

PIC16LC62A-04I/SS Overview

The package has a 28-SSOP (0.209, 5.30mm Width) shape. With 22 I/Os, it's pretty good. The Microcontroller's mounting type is Surface Mount and this IC chip has the following features. As the name implies, this Microcontroller is based on the 8-Bit core. As far as its program memory type is concerned, it is OTP. Temperatures within -40°C~85°C TA range are measured by this Microcontroller. The PIC® 16C series is comprised of this electrical component. The electronic part has a program memory size of 3.5KB 2K x 14. There's a PIC Core Processor inside. The IC chip fits into the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. There are 28 terminations on the IC chip. 8-bits are the size of the data that comes with MCU. A 5V volt supply is provided by the Microcontroller chip. In addition to that, MCU chip has NO DMA channels. Its memory size is 3.5kB. It is possible to find alternatives to the base part number PIC16LC62A by using the part number search tool. An effective performance can be achieved at a frequency of 4MHz. There are a total of NO channels in the device. It is possible to access the 28 pins on the chip. In total, it has 3 timers and counters in it. A total of 28 pins are included in the package. There are several CPUs that are embedded in the device, including the the PIC CPU. The equipment on this page features OTP memory technology. This device features a PIC core architecture. As far as the programmability is concerned, it has 22 Programmable I/Os.
