R76PR368050H4J

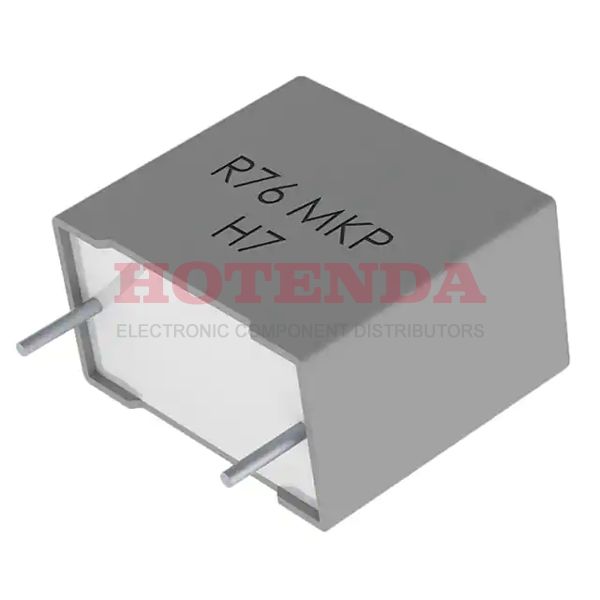

  • R76PR368050H4J - R76 0.68μF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized
  • R76PR368050H4J - R76 0.68μF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized

R76PR368050H4J

R76PR368050H4J

KEMET

R76 0.68μF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized

SOT-23

R76PR368050H4J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 16 Weeks
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~125°C
PackagingTray
Series R76
Size / Dimension 1.260Lx0.512W 32.00mmx13.00mm
Tolerance ±5%
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Capacitance 0.68μF
Voltage - Rated DC 630V
Voltage - Rated AC 400V
ESR (Equivalent Series Resistance) 5mOhm
Lead Spacing1.083 27.50mm
Height Seated (Max) 0.988 25.10mm
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:2169 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.068987$3.068987
10$2.895271$28.95271
100$2.731387$273.1387
500$2.576780$1288.39
1000$2.430925$2430.925

R76PR368050H4J Product Details

R76PR368050H4J Overview


There is 5mOhm ESR (Equivalent Series Resistance) from the device.The lead spacing of this electrical device is 1.083 27.50mm.The device is capable of operating at the temperature of -55°C~125°C.

R76PR368050H4J Features


5mOhm equivalent series resistance (ESR)


R76PR368050H4J Applications


There are a lot of KEMET
R76PR368050H4J applications of film capacitors.


  • Blocking
  • Coupling, decoupling
  • Bypassing
  • RFI for automotive
  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
