B32682A7472K000

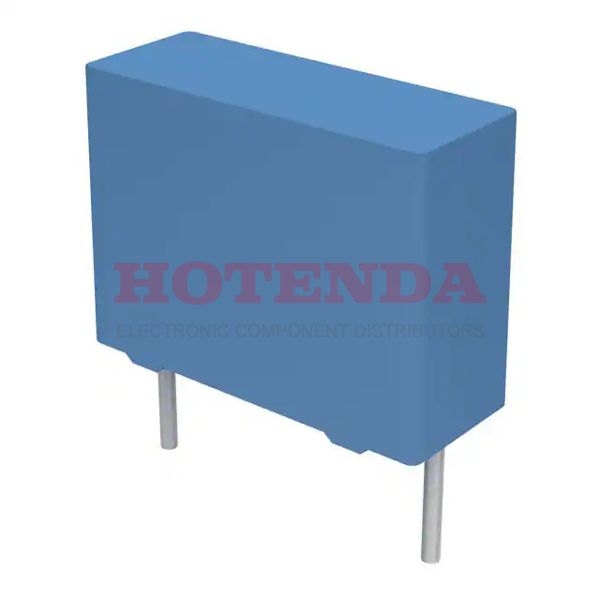

  • B32682A7472K000 - B32682 4700pF Film Capacitor ±10% Radial PC Pins 1250V 1.25kV-DC 450V-AC Polypropylene (PP), Metallized
  • B32682A7472K000 - B32682 4700pF Film Capacitor ±10% Radial PC Pins 1250V 1.25kV-DC 450V-AC Polypropylene (PP), Metallized

B32682A7472K000

B32682A7472K000

TDK Electronics Inc.

B32682 4700pF Film Capacitor ±10% Radial PC Pins 1250V 1.25kV-DC 450V-AC Polypropylene (PP), Metallized

SOT-23

B32682A7472K000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 20 Weeks
Mounting Type Through Hole
Package / Case Radial
Surface MountNO
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~110°C
PackagingBulk
Series B32682
Size / Dimension 0.709Lx0.276W 18.00mmx7.00mm
Tolerance ±10%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish TIN
Applications High Pulse, DV/DT
HTS Code8532.25.00.70
Capacitance 4700pF
Voltage - Rated DC 1250V 1.25kV
Reach Compliance Code unknown
Voltage - Rated AC 450V
Capacitor Type FILM CAPACITOR
Lead Spacing0.591 15.00mm
Rated (DC) Voltage (URdc) 1250V
Height Seated (Max) 0.492 12.50mm
RoHS StatusROHS3 Compliant
In-Stock:6683 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.04000$1.04
10$0.79200$7.92
100$0.56680$56.68
500$0.43884$219.42

B32682A7472K000 Product Details

B32682A7472K000 Overview


An internal (DC) voltage of 1250V is required for systems to function.Lead spacing is 0.591 15.00mm for this electrical device.In addition to operating at -55°C~110°C degrees, the device is capable of operating at other temperatures as well.

B32682A7472K000 Features


a rated (DC) voltage (URdc) of 1250V

B32682A7472K000 Applications


There are a lot of TDK Electronics Inc. B32682A7472K000 applications of film capacitors.

  • Compact fluorescent lamps (CFL)
  • Blocking
  • Filtering
  • Coupling, decoupling
  • TV and monitor sets
  • Satellite TV
  • VCO's
  • Snubbering
  • Electronic ballasts
  • Lighting
