Name: B32023B3104M000
Brand: TDK Electronics Inc.
SKU: B32023B3104M000
Price: 0.89000 USD
Availability: InStock

new-10%

B32023B3104M000

Manufacturer part number:B32023B3104M000

Manufacturer:TDK Electronics Inc.

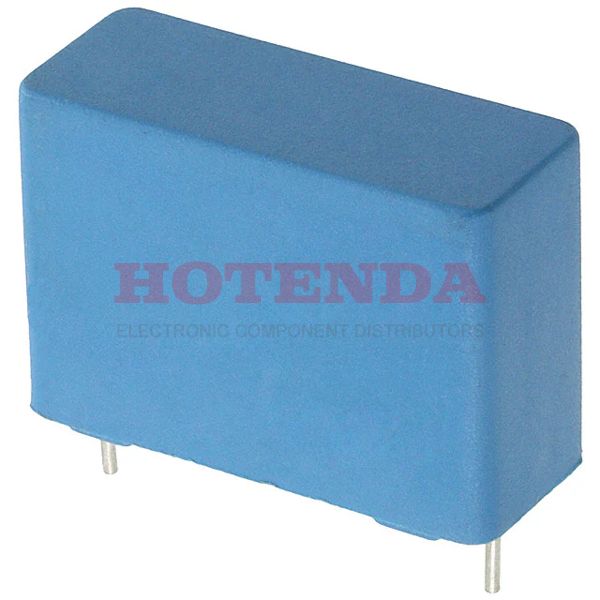

Description:B32023 0.1μF Film Capacitor ±20% Radial PC Pins 1500V 1.5kV-DC 300V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32023B3104M000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-40°C~110°C
Packaging	Bulk
Series	B32023
Size / Dimension	1.043Lx0.413W 26.50mmx10.50mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	0.1μF
Voltage - Rated DC	1500V 1.5kV
Terminal Pitch	22.5mm
Voltage - Rated AC	300V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.886 22.50mm
Rated (DC) Voltage (URdc)	1500V
Rated (AC) Voltage (URac)	300V
Height Seated (Max)	0.650 16.50mm
Length	26.5mm
Width	10.5mm
RoHS Status	ROHS3 Compliant
Ratings	Y2

B32023B3104M000 Product Details

B32023B3104M000 Overview

For systems to function, the rated (DC) voltage (URdc) must be 1500V.Electrical devices such as this have a lead spacing of 0.886 22.50mm.Systems require a voltage of 300V for their internal rated power (URac).In addition to operating at -40°C~110°C degrees, the device is capable of operating at other temperatures as well.
