PME271M422MR30

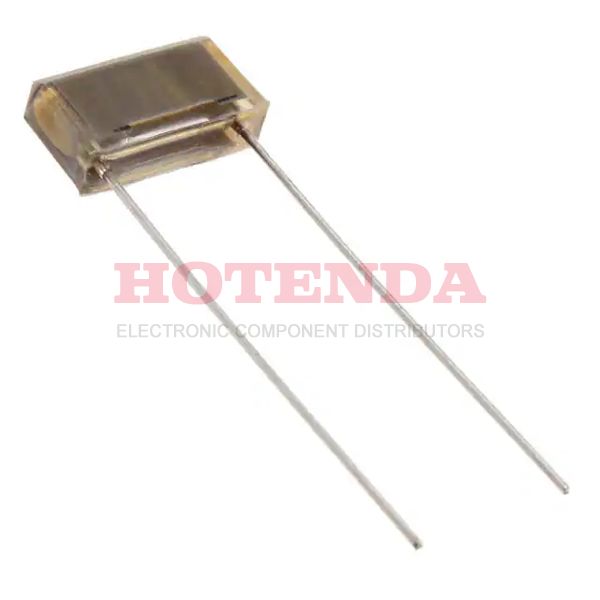

  • PME271M422MR30 - PME271M 2200pF Film Capacitor ±20% Radial PC Pins 630V-DC 275V-AC Paper, Metallized Through Hole
  • PME271M422MR30 - PME271M 2200pF Film Capacitor ±20% Radial PC Pins 630V-DC 275V-AC Paper, Metallized Through Hole

PME271M422MR30

PME271M422MR30

KEMET

PME271M 2200pF Film Capacitor ±20% Radial PC Pins 630V-DC 275V-AC Paper, Metallized Through Hole

SOT-23

PME271M422MR30 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 26 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPaper, Metallized
Operating Temperature-40°C~110°C
PackagingBulk
Published 2016
Series PME271M
Size / Dimension 0.531Lx0.154W 13.50mmx3.90mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications EMI, RFI Suppression
HTS Code8532.25.00.10
Capacitance 2200pF
Voltage - Rated DC 630V
Depth 3.9mm
Voltage - Rated AC 275V
Lead Pitch 10.2mm
Capacitor Type PAPER CAPACITOR
Lead Spacing0.402 10.20mm
Lead Diameter 600 μm
Dissipation Factor1.3 %
Lead/Base Style Straight
Height 7.5mm
Height Seated (Max) 0.295 7.50mm
Length 13.5mm
RoHS StatusROHS3 Compliant
Ratings X2
In-Stock:4110 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.28000$1.28
10$1.01400$10.14
100$0.76030$76.03
500$0.57444$287.22

PME271M422MR30 Product Details

PME271M422MR30 Overview


Electrical devices have 0.402 10.20mm lead spacing.-40°C~110°C is the maximum temperature at which the device can operate.

PME271M422MR30 Features



PME271M422MR30 Applications


There are a lot of KEMET PME271M422MR30 applications of film capacitors.

  • Satellite TV
  • Snubbering
  • TV and monitor sets
  • RFI for automotive
  • Switch-mode power supplies
  • Battery management system
  • Lighting
  • Bypassing
  • Filters
  • Electronic ballasts
