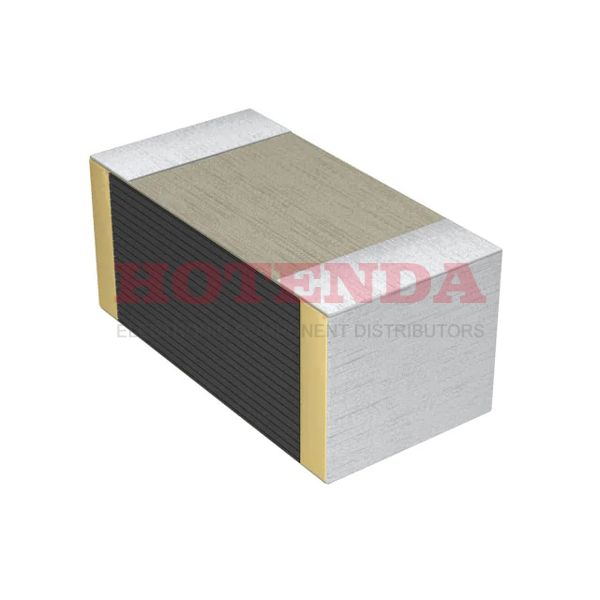

ECH-U1C151JX5

  • ECH-U1C151JX5 - ECH-U(X) 150pF Film Capacitor ±5% 0603 (1608 Metric) Solder Pads 16V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked Surface Mount
  • ECH-U1C151JX5 - ECH-U(X) 150pF Film Capacitor ±5% 0603 (1608 Metric) Solder Pads 16V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked Surface Mount

ECH-U1C151JX5

ECH-U1C151JX5

Panasonic Electronic Components

ECH-U(X) 150pF Film Capacitor ±5% 0603 (1608 Metric) Solder Pads 16V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked Surface Mount

SOT-23

ECH-U1C151JX5 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Terminal Shape WRAPAROUND
Dielectric MaterialPolyphenylene Sulfide (PPS), Metallized - Stacked
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
Published 2008
Series ECH-U(X)
Size / Dimension 0.063Lx0.031W 1.60mmx0.80mm
Tolerance ±5%
JESD-609 Code e1
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications General Purpose
HTS Code8532.25.00.45
Capacitance 150pF
Voltage - Rated DC 16V
Packing Method TR, 7 INCH
Depth 800μm
Case Code (Metric) 1608
Case Code (Imperial) 0603
Capacitor Type FILM CAPACITOR
Dielectric PPS
Voltage 16V
Height 700μm
Height Seated (Max) 0.033 0.85mm
Length 1.6mm
Width 0.8mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead Free Contains Lead
In-Stock:17820 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.297605$0.297605
10$0.280759$2.80759
100$0.264867$26.4867
500$0.249874$124.937
1000$0.235731$235.731

ECH-U1C151JX5 Product Details

ECH-U1C151JX5 Overview


Temperatures as low as -55°C~125°C are suitable for the device.

ECH-U1C151JX5 Features




ECH-U1C151JX5 Applications


There are a lot of Panasonic Electronic Components
ECH-U1C151JX5 applications of film capacitors.


  • RFI for automotive
  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
