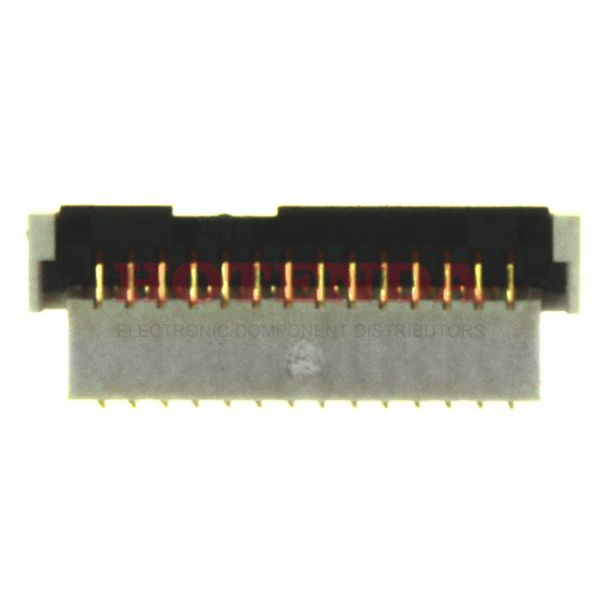

Name: FB6S027JA1
Brand: JAE Electronics
SKU: FB6S027JA1
Availability: InStock

new-10%

FB6S027JA1

Manufacturer part number:FB6S027JA1

Manufacturer:JAE Electronics

Description:FB6S027JA1 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from JAE Electronics stock available on our website

Case Package:SOT-23

Datasheet:FB6S027JA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-40°C~85°C
Packaging	Bulk
Published	2006
Series	FB6
Feature	Low Insertion Force (LIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	27
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Voltage - Rated	50V
Current Rating (Amps)	0.35A per Contact
Pitch	0.012 0.30mm
Current Rating	350mA
Contact Finish	Gold
Housing Color	Beige
Mating Cycles	20
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Black
Contact Location	Bottom
Height Above Board	0.047 1.20mm
FFC, FCB Thickness	0.15mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FB6S027JA1 Product Details

FB6S027JA1 Overview

Mounting type Surface Mount, Right Angle is selected for the device.Bulk cases are used to package the product.The product belongs to the FB6 Series.Use it below 85°C.A minimum operating temperature of -40°C is required for this device.A number of advantages can be derived from its Low Insertion Force (LIF) feature.There's a Surface Mount on the part.-40°C~85°C Operating Temperature is used by the device.
