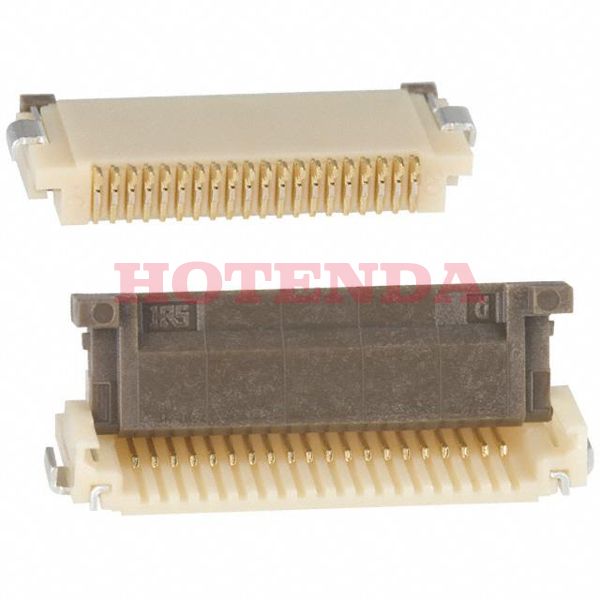

Name: FH12-20S-0.5SH(59)
Brand: Hirose Electric Co Ltd
SKU: FH12-20S-0.5SH(59)
Availability: InStock

new-10%

FH12-20S-0.5SH(59)

Manufacturer part number:FH12-20S-0.5SH(59)

Manufacturer:Hirose Electric Co Ltd

Description:FH12-20S-0.5SH(59) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH12-20S-0.5SH(59) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA), Nylon
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Series	FH12
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	20
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Voltage - Rated	50V
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Current Rating	500mA
Contact Finish	Gold
Housing Color	Beige
Insulation Resistance	500MOhm
Wire/Cable Type	Flat Flex
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight
Locking Feature	Flip Lock
Actuator Color	Brown
Height Above Board	0.079 2.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FH12-20S-0.5SH(59) Product Details

FH12-20S-0.5SH(59) Overview

It's mounted Surface Mount, Right Angle.Packaging for the product is carried out via a Tape & Reel (TR) case.The product is a part of the FH12 Series.You should use it at a temperature below 85°C.The device must operate at a temperature of -40°C at all times.This feature makes it more powerful in a number of ways due to its Zero Insertion Force (ZIF) feature.Surface Mount is the mounting point for the part.Device runs in -40°C~85°C operating temperature.
