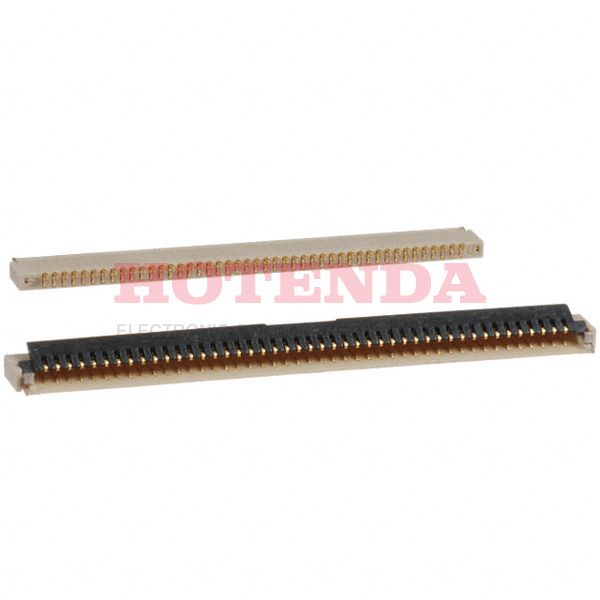

Name: FH19SC-45S-0.5SH(09)
Brand: Hirose Electric Co Ltd
SKU: FH19SC-45S-0.5SH(09)
Availability: InStock

new-10%

FH19SC-45S-0.5SH(09)

Manufacturer part number:FH19SC-45S-0.5SH(09)

Manufacturer:Hirose Electric Co Ltd

Description:FH19SC-45S-0.5SH(09) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH19SC-45S-0.5SH(09) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH19SC
JESD-609 Code	e4
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	45
Number of Rows	1
Voltage - Rated	50V
Additional Feature	ZIF, LOW PROFILE
HTS Code	8536.69.40.51
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	45
Reach Compliance Code	unknown
Current Rating	500mA
Contact Finish	Gold
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Beige
Insulation Resistance	500MOhm
Wire/Cable Type	Flat Flex
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Black
Height Above Board	0.037 0.95mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FH19SC-45S-0.5SH(09) Product Details

FH19SC-45S-0.5SH(09) Overview

A FFC/FPC CONNECTOR packaging is included.Surface Mount, Right Angle is the type of mounting for the device.Packaging is performed using a Tape & Reel (TR) case.It belongs to the FH19SC Series of products.As well as ZIF, LOW PROFILE, to name a few.In many ways, its Solder Retention, Zero Insertion Force (ZIF) feature makes it more powerful.It's mounted by Surface Mount.The device is operating at -55°C~85°C Operating Temperature.
