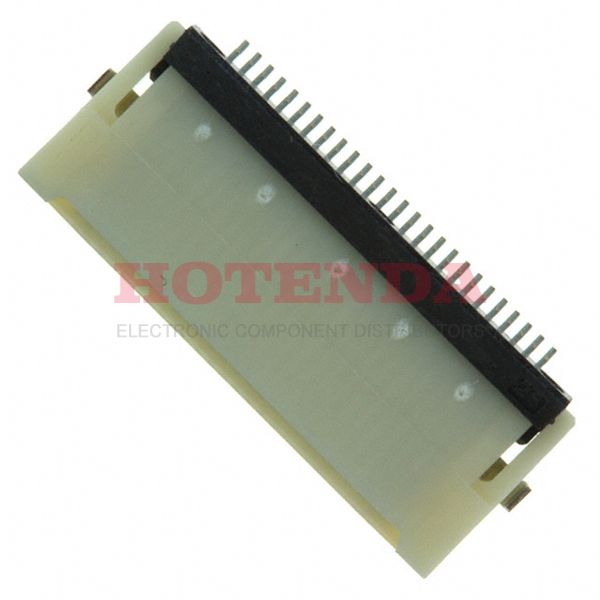

Name: XF2H-2615-1
Brand: Omron Electronics Inc-EMC Div
SKU: XF2H-2615-1
Availability: InStock

new-10%

XF2H-2615-1

Manufacturer part number:XF2H-2615-1

Manufacturer:Omron Electronics Inc-EMC Div

Description:XF2H-2615-1 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF2H-2615-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA46), Nylon 4/6
Actuator Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-30°C~85°C
Packaging	Cut Tape (CT)
Published	2001
Series	XF2H
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Number of Positions	26
Number of Rows	1
Gender	Female
Voltage - Rated	50V
Additional Feature	LOW PROFILE, ZIF
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	26
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Tin Alloy
Reliability	COMMERCIAL
Number Of PCB Rows	1
Lead Pitch	500μm
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Housing Color	Natural
Contact Style	BELLOWED TYPE
Contact Resistance	30mOhm
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	20
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Straight
Locking Feature	Rotary Lock, Backlock
Actuator Color	Black
Height	2mm
Length	17.1mm
Width	7.3mm
Contact Finish Thickness	78.7μin 2.00μm
Plating Thickness	79μin
Height Above Board	0.079 2.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

XF2H-2615-1 Product Details

XF2H-2615-1 Overview

Its mounting type is Surface Mount, Right Angle.In order to package the product, a Cut Tape (CT) case is used.The product is a part of the XF2H Series.In addition, there are other features, such as LOW PROFILE, ZIF, to mention just a few.Its Zero Insertion Force (ZIF) feature makes it more powerful in a number of ways.The part is mounted by Surface Mount.-30°C~85°C Operating Temperature is the default.
