Name: IXFT24N50Q
Brand: IXYS
SKU: IXFT24N50Q
Availability: InStock

new-10%

IXFT24N50Q

Manufacturer part number:IXFT24N50Q

Manufacturer:IXYS

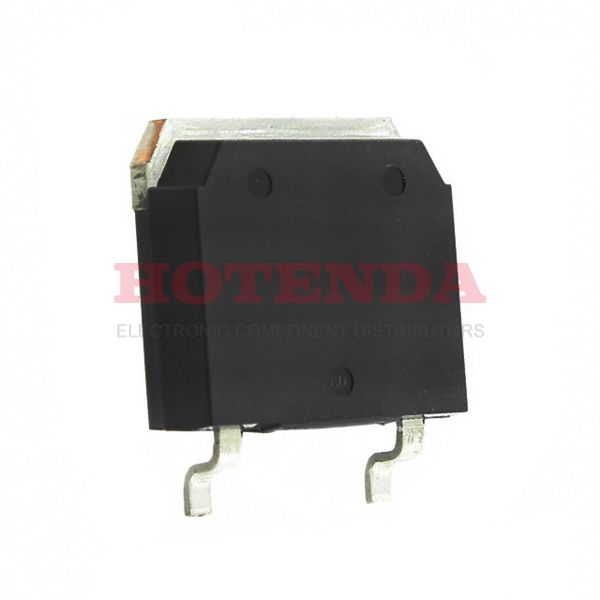

Description:Trans MOSFET N-CH 500V 24A 3-Pin(2+Tab) TO-268

Case Package:SOT-23

Datasheet:IXFT24N50Q Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-268-3, D3Pak (2 Leads + Tab), TO-268AA
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tube
Published	2003
Series	HiPerFET™
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Terminal Finish	Matte Tin (Sn)
Additional Feature	AVALANCHE RATED
Technology	MOSFET (Metal Oxide)
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	4
JESD-30 Code	R-PSSO-G2
Qualification Status	Not Qualified
Number of Elements	1
Power Dissipation-Max	300W Tc
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	300W
Case Connection	DRAIN
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	230m Ω @ 12A, 10V
Vgs(th) (Max) @ Id	4.5V @ 4mA
Input Capacitance (Ciss) (Max) @ Vds	3900pF @ 25V
Current - Continuous Drain (Id) @ 25°C	24A Tc
Gate Charge (Qg) (Max) @ Vgs	95nC @ 10V
Rise Time	30ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	16 ns
Turn-Off Delay Time	55 ns
Continuous Drain Current (ID)	24A
Gate to Source Voltage (Vgs)	20V
Drain-source On Resistance-Max	0.23Ohm
Drain to Source Breakdown Voltage	500V
Pulsed Drain Current-Max (IDM)	96A
Avalanche Energy Rating (Eas)	1500 mJ
RoHS Status	ROHS3 Compliant
