Name: IRLR014TRL
Brand: Vishay Siliconix
SKU: IRLR014TRL
Availability: InStock

new-10%

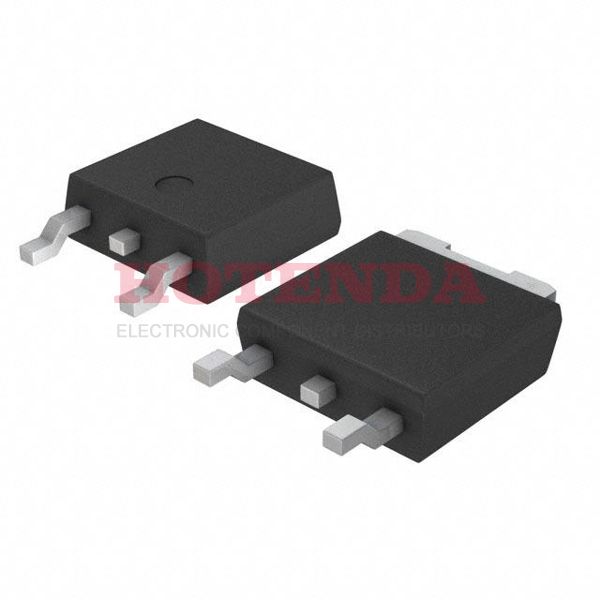

IRLR014TRL

Manufacturer part number:IRLR014TRL

Manufacturer:Vishay Siliconix

Description:MOSFET N-CH 60V 7.7A DPAK

Case Package:SOT-23

Datasheet:IRLR014TRL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2016
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	TIN LEAD
Additional Feature	LOGIC LEVEL COMPATIBLE
HTS Code	8541.29.00.95
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
[email protected] Reflow Temperature-Max (s)	30
Pin Count	3
JESD-30 Code	R-PSSO-G2
Number of Elements	1
Power Dissipation-Max	2.5W Ta 25W Tc
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Case Connection	DRAIN
Turn On Delay Time	9.3 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	200m Ω @ 4.6A, 5V
Vgs(th) (Max) @ Id	2V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	400pF @ 25V
Current - Continuous Drain (Id) @ 25°C	7.7A Tc
Gate Charge (Qg) (Max) @ Vgs	8.4nC @ 5V
Rise Time	110ns
Drive Voltage (Max Rds On,Min Rds On)	4V 5V
Vgs (Max)	±10V
Fall Time (Typ)	26 ns
Turn-Off Delay Time	17 ns
Continuous Drain Current (ID)	7.7A
Gate to Source Voltage (Vgs)	10V
Drain-source On Resistance-Max	0.2Ohm
Drain to Source Breakdown Voltage	60V
Avalanche Energy Rating (Eas)	27.4 mJ
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
