Name: IRLZ44ZLPBF
Brand: Infineon Technologies
SKU: IRLZ44ZLPBF
Availability: InStock

new-10%

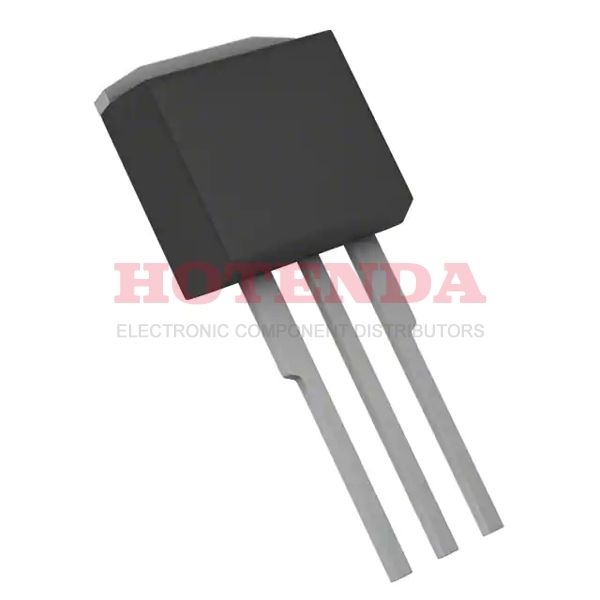

IRLZ44ZLPBF

Manufacturer part number:IRLZ44ZLPBF

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 55V 51A TO-262

Case Package:SOT-23

Datasheet:IRLZ44ZLPBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-262-3 Long Leads, I2Pak, TO-262AA
Number of Pins	3
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2004
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Voltage - Rated DC	55V
Technology	MOSFET (Metal Oxide)
Current Rating	51A
Number of Elements	1
Power Dissipation-Max	80W Tc
Power Dissipation	80W
Turn On Delay Time	14 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	13.5m Ω @ 31A, 10V
Vgs(th) (Max) @ Id	3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	1620pF @ 25V
Current - Continuous Drain (Id) @ 25°C	51A Tc
Gate Charge (Qg) (Max) @ Vgs	36nC @ 5V
Rise Time	160ns
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±16V
Fall Time (Typ)	42 ns
Turn-Off Delay Time	25 ns
Continuous Drain Current (ID)	51A
Gate to Source Voltage (Vgs)	16V
Drain to Source Breakdown Voltage	55V
Height	9.65mm
Length	10.668mm
Width	4.826mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

About IRLZ44ZLPBF

The IRLZ44ZLPBF from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 55V 51A TO-262.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IRLZ44ZLPBF, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
