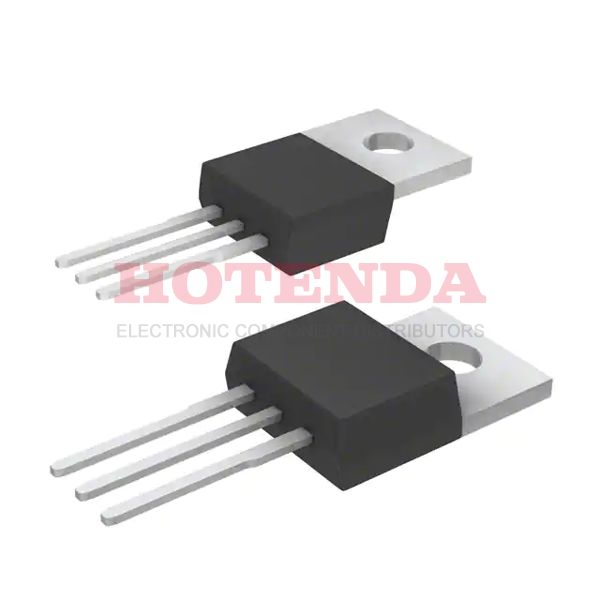

IXFP4N100Q Overview
As a result of avalanche breakdown, energy applied to the MOSFET is called avalanche energy, and the avalanche energy rating is 700 mJ.A device's maximum input capacitance is 1050pF @ 25V, but its input capacitance parameter, CI, is measured as the capacitance between the input terminals of the device with either input grounded.Its continuous drain current is 4A for this device. Drain current refers to the capacity of the device to conduct continuous current.Single MOSFETs transistor is the voltage at which VDS flows at a specified ID value, wSingle MOSFETs transistorh VGS=1kV, and this device has a drain-to-source breakdown voltage of 1kV voltage.Its drain current is 4A, and it is the maximum continuous current the device can conduct.A device's turn-off delay time is the amount of time it takes to charge its input capacitance before drain current conduction can begin, which is 32 ns.Generally, the gate-source voltage (VGS) of a FET transistor is the voltage across its gate-source terminal, which is 20V.An electrical device's threshold voltage specifies when any of its operations will begin, and this transistor has a threshold voltage of 5V.To operate this transistor, you need to apply a 1000V drain to source voltage (Vdss).This device uses no drive voltage (10V) to reduce its overall power consumption.
IXFP4N100Q Features
the avalanche energy rating (Eas) is 700 mJ
a continuous drain current (ID) of 4A
a drain-to-source breakdown voltage of 1kV voltage
the turn-off delay time is 32 ns
a threshold voltage of 5V
a 1000V drain to source voltage (Vdss)
IXFP4N100Q Applications
There are a lot of IXYS
IXFP4N100Q applications of single MOSFETs transistors.
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
- Industrial Power Supplies
- PFC stages, hard switching PWM stages and resonant switching
- PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
- Lighting, Server, Telecom and UPS.
- DC-to-DC converters
