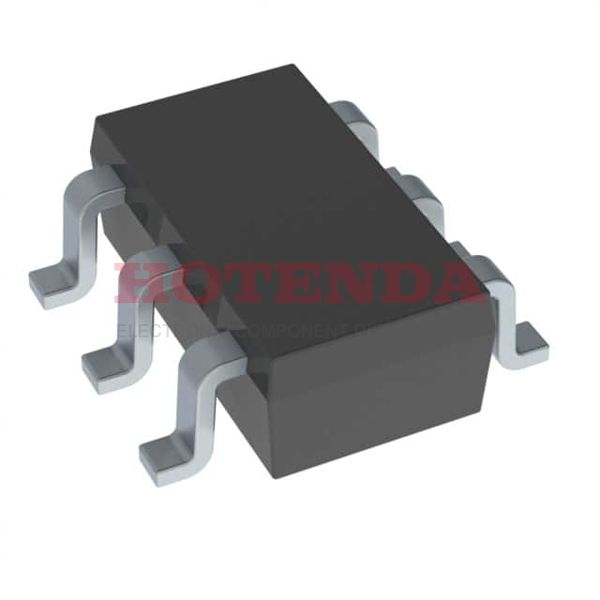

Name: SI3410DV-T1-E3
Brand: Vishay Siliconix
SKU: SI3410DV-T1-E3
Availability: InStock

new-10%

SI3410DV-T1-E3

Manufacturer part number:SI3410DV-T1-E3

Manufacturer:Vishay Siliconix

Description:MOSFET N-CH 30V 8A 6-TSOP

Case Package:SOT-23

Datasheet:SI3410DV-T1-E3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Number of Pins	6
Supplier Device Package	6-TSOP
Weight	19.986414mg
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2015
Series	TrenchFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Technology	MOSFET (Metal Oxide)
Number of Elements	1
Number of Channels	1
Power Dissipation-Max	2W Ta 4.1W Tc
Element Configuration	Single
Power Dissipation	2W
Turn On Delay Time	10 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	19.5mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	1295pF @ 15V
Current - Continuous Drain (Id) @ 25°C	8A Tc
Gate Charge (Qg) (Max) @ Vgs	33nC @ 10V
Rise Time	8ns
Drain to Source Voltage (Vdss)	30V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Fall Time (Typ)	8 ns
Turn-Off Delay Time	21 ns
Continuous Drain Current (ID)	8A
Threshold Voltage	3V
Gate to Source Voltage (Vgs)	20V
Input Capacitance	1.295nF
Drain to Source Resistance	19.5mOhm
Rds On Max	19.5 mΩ
Nominal Vgs	3 V
Height	1mm
Length	3.05mm
Width	1.65mm
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant

About SI3410DV-T1-E3

The SI3410DV-T1-E3 from Vishay Siliconix is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 30V 8A 6-TSOP.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the SI3410DV-T1-E3, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
