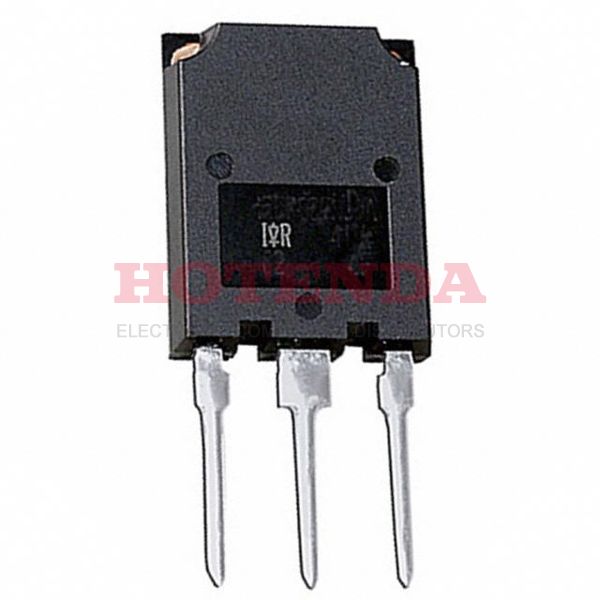

IRG4PSC71KPBF Description
IGBTs are capable of switching on and off several thousand times a second. A VFD IGBT can turn on in less than 400 nanoseconds and off in approximately 500 nanoseconds. A VFD IGBT consists of a gate, collector and an emitter. When a positive voltage (typically +15 VDC) is applied to the gate the IGBT will turn on.
IRG4PSC71KPBF Features
? Hole-less clip/pressure mount package compatible
with TO-247 and TO-264, with reinforced pins
? High abort circuit rating IGBTs, optimized for
motorcontrol
? Minimum switching losses combined with low
conduction losses
? Tightest parameter distribution
? Cree page distance increased to 5.35mm
IRG4PSC71KPBF Applications
active SCSI?2 terminators
post regulation of switching power supplies
