Name: IRF7506TRPBF
Brand: Infineon Technologies
SKU: IRF7506TRPBF
Availability: InStock

new-10%

IRF7506TRPBF

Manufacturer part number:IRF7506TRPBF

Manufacturer:Infineon Technologies

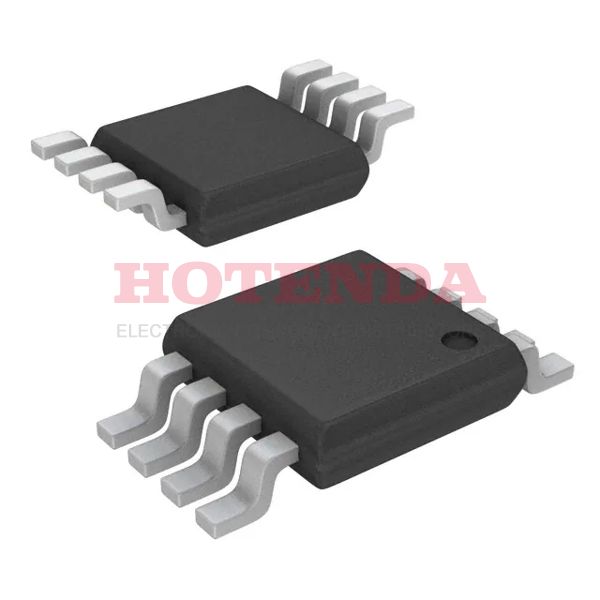

Description:MOSFET 2P-CH 30V 1.7A MICRO8

Case Package:SOT-23

Datasheet:IRF7506TRPBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Number of Pins	8
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	1997
Series	HEXFET®
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	8
Termination	SMD/SMT
Resistance	270mOhm
Additional Feature	LOGIC LEVEL COMPATIBLE
Max Power Dissipation	1.25W
Terminal Form	GULL WING
Base Part Number	IRF7506PBF
Number of Elements	2
Element Configuration	Dual
Operating Mode	ENHANCEMENT MODE
Power Dissipation	1.25W
Turn On Delay Time	9.7 ns
FET Type	2 P-Channel (Dual)
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	270m Ω @ 1.2A, 10V
Vgs(th) (Max) @ Id	1V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	180pF @ 25V
Current - Continuous Drain (Id) @ 25°C	1.7A
Gate Charge (Qg) (Max) @ Vgs	11nC @ 10V
Rise Time	12ns
Drain to Source Voltage (Vdss)	30V
Fall Time (Typ)	9.3 ns
Turn-Off Delay Time	19 ns
Continuous Drain Current (ID)	-1.7A
Threshold Voltage	-1V
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	-30V
Pulsed Drain Current-Max (IDM)	9.6A
Dual Supply Voltage	-30V
FET Technology	METAL-OXIDE SEMICONDUCTOR
FET Feature	Logic Level Gate
Nominal Vgs	-1 V
Height	910μm
Length	3.048mm
Width	3.048mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
