Name: ZXM64P03XTC
Brand: Diodes Incorporated
SKU: ZXM64P03XTC
Availability: InStock

new-10%

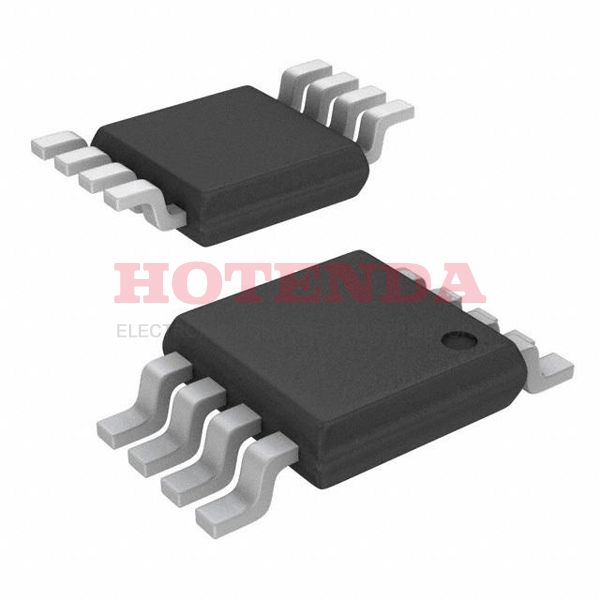

ZXM64P03XTC

Manufacturer part number:ZXM64P03XTC

Manufacturer:Diodes Incorporated

Description:MOSFET P-CH 30V 3.8A 8MSOP

Case Package:SOT-23

Datasheet:ZXM64P03XTC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Surface Mount	YES
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2012
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Additional Feature	LOW THRESHOLD
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Reach Compliance Code	compliant
Pin Count	8
JESD-30 Code	S-PDSO-G8
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	1.1W Ta
Operating Mode	ENHANCEMENT MODE
FET Type	P-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	75m Ω @ 2.4A, 10V
Vgs(th) (Max) @ Id	1V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	825pF @ 25V
Current - Continuous Drain (Id) @ 25°C	3.8A Ta
Gate Charge (Qg) (Max) @ Vgs	46nC @ 10V
Drain to Source Voltage (Vdss)	30V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Drain Current-Max (Abs) (ID)	3.8A
Drain-source On Resistance-Max	0.075Ohm
DS Breakdown Voltage-Min	30V
RoHS Status	RoHS Compliant
